Umbrella Base
Outdoor Umbrella Base Collection
Umbrella Base: The Foundation That Keeps Your Outdoor Shade Standing
An umbrella base is the weighted foundation that anchors a patio or commercial umbrella to the ground and keeps the canopy upright in wind. The first decision is simple: a center pole umbrella base sits directly beneath a straight mast, while a side pole umbrella base (for cantilever umbrellas) works as an off-center counterweight. Pick the wrong type and even a premium umbrella will tip or lean.
Center Pole Umbrella Base vs. Side Pole Umbrella Base: How to Tell Them Apart
Both are umbrella bases, but they solve different engineering problems. The clearest way to choose is to look at where your umbrella's pole enters the base.
Center Pole Umbrella Base
- Central socket under a straight mast
- Lower weight (10–25kg fillable / resin)
- For market, garden & café umbrellas
- Low, discreet profile
Side Pole Umbrella Base
- Off-center counterweight for offset masts
- Heavy (60–180L water or cross frame)
- For cantilever / roman umbrellas
- Built to resist canopy leverage
| Criteria | Center Pole Umbrella Base | Side Pole Umbrella Base |
|---|---|---|
| Pole position | Straight mast through the center | Offset / cantilever mast on one side |
| Typical weight | 10–25 kg (resin or fillable) | 60–180 L water (≈60–180 kg filled) |
| Form factor | Low square / round plinth | Cross-frame or large water tank |
| Best for | Market, patio, café umbrellas | Cantilever, roman, large commercial shade |

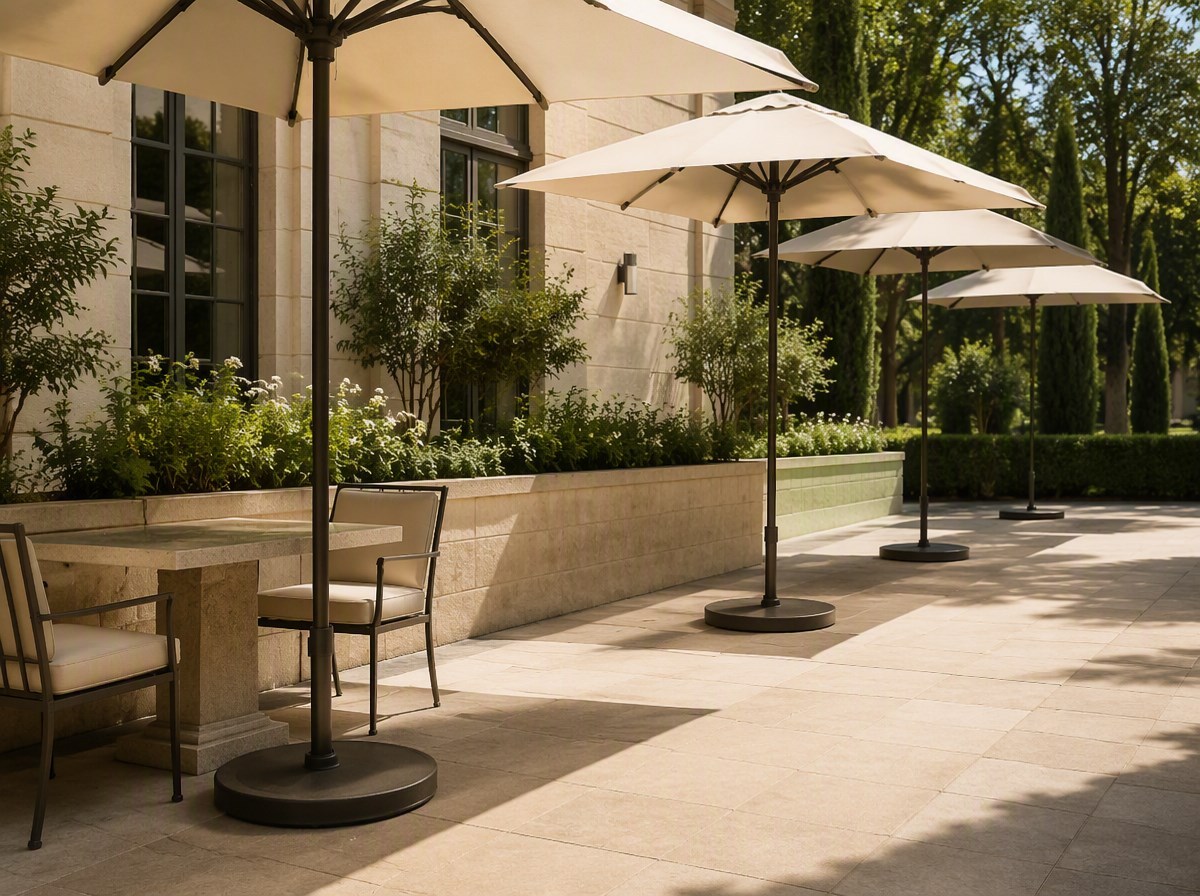

Center Pole Umbrella Base: Stable, Low-Profile Support for Market Umbrellas

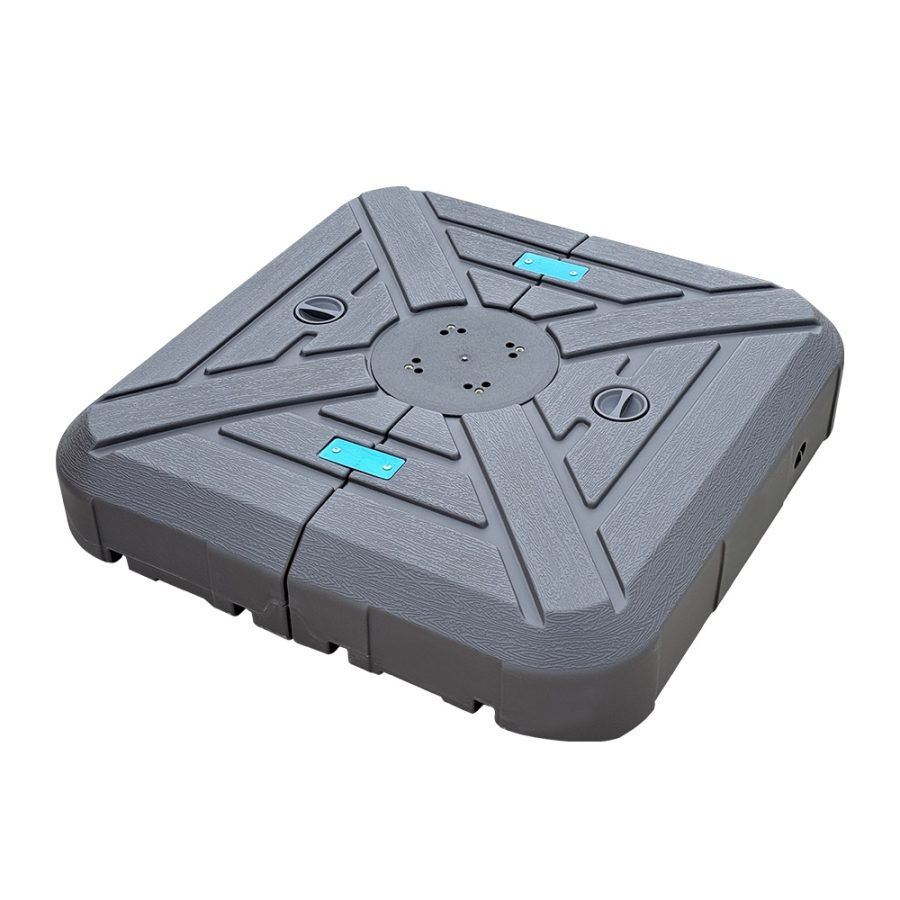

A center pole umbrella base places the weight directly beneath the mast, so the load path is vertical and inherently stable. Our range covers decorative resin stands, fillable HDPE squares, and in-ground iron sockets — all engineered for 38–50mm poles used on standard market and commercial umbrellas.
18kg Patio Base
38/48mm pole fit, decorative stable outdoor stand.

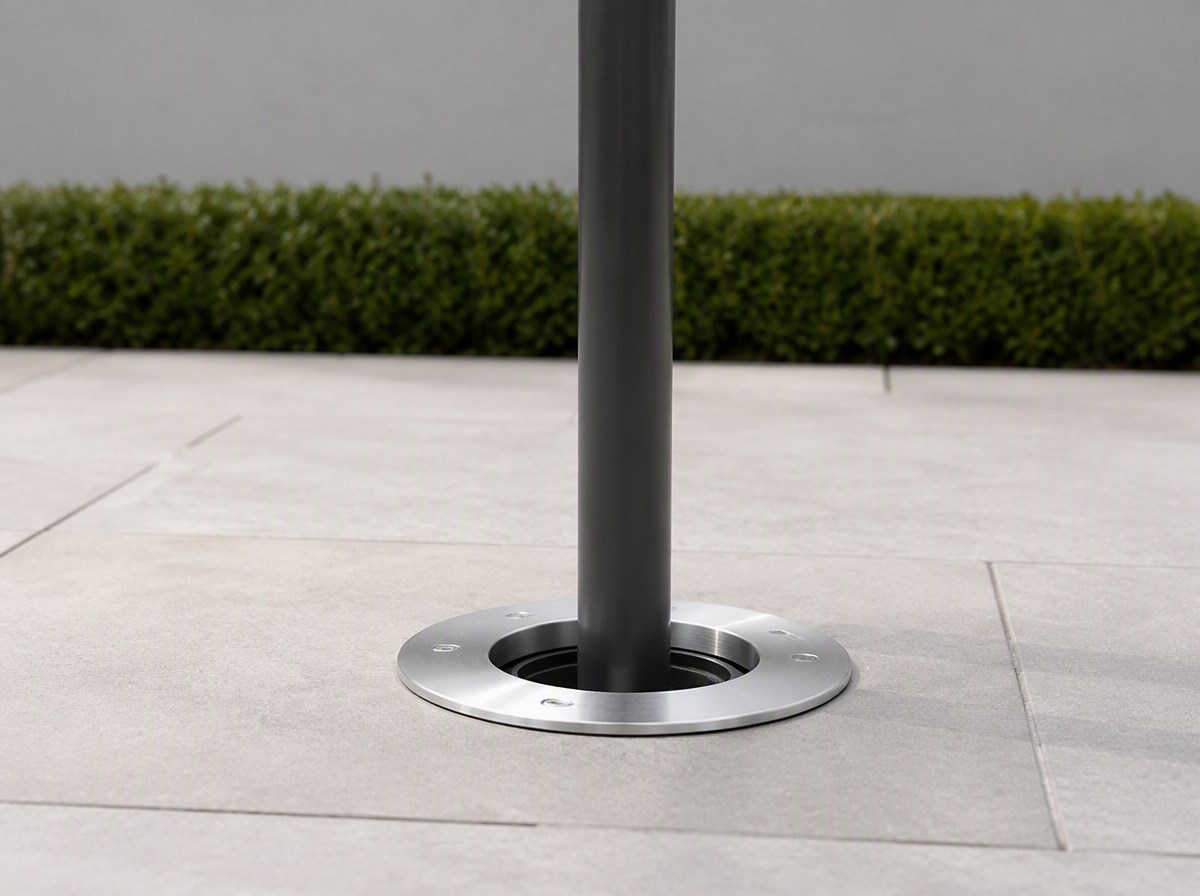

Iron In-Ground Socket
13mm thick, rustproof, for permanent installations.

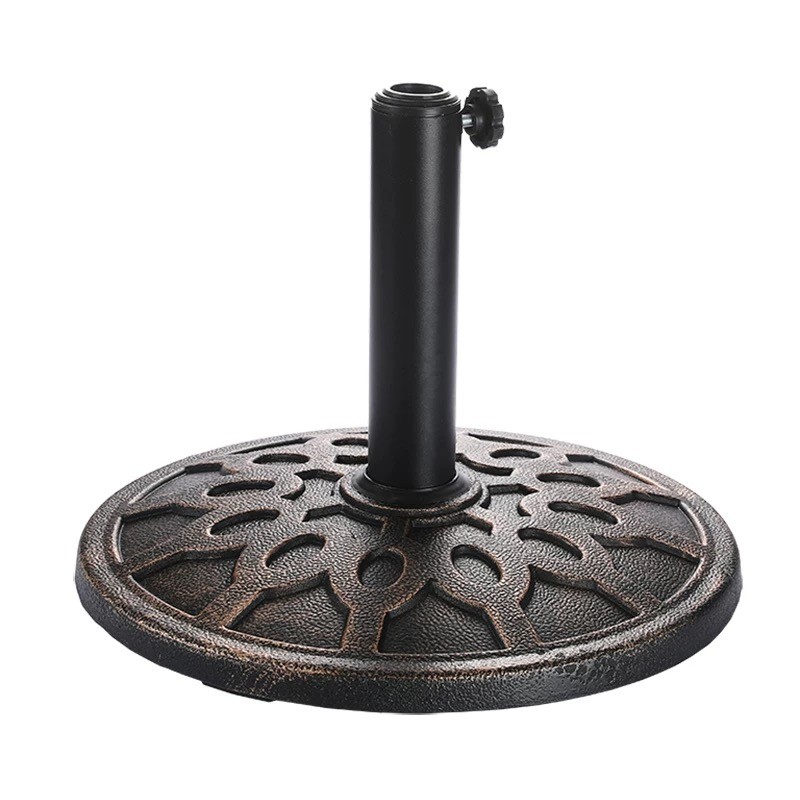

Bronze Resin Base
Decorative finish for 38–48mm poles.

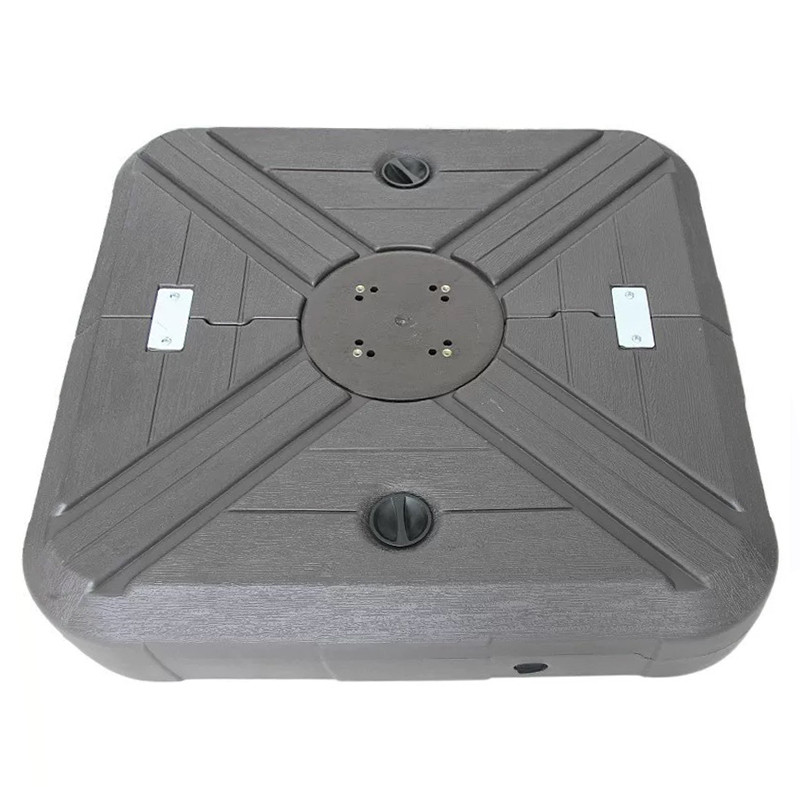

Side Pole Umbrella Base: Heavy-Duty Counterweight for Cantilever Umbrellas
A cantilever umbrella pushes its canopy out to the side, which creates leverage the base must resist. That is why a side pole umbrella base is far heavier than a center pole version — usually a 60–180L water tank or a bolt-down cross frame. Filling on site keeps shipping light; the weight arrives with the water.

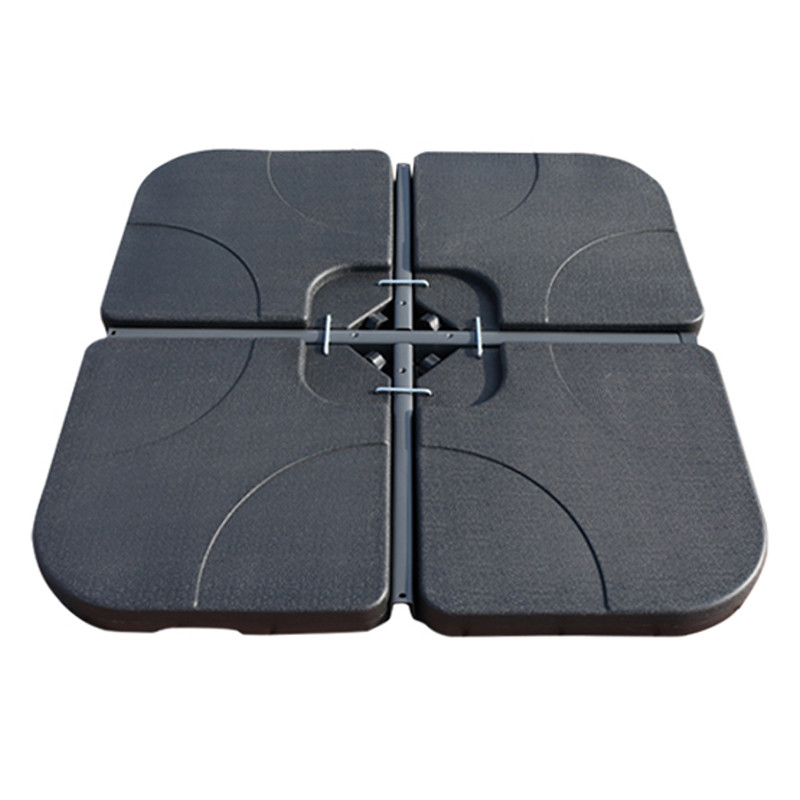

60L Cross Base
4-piece interlocking support for mid-size cantilevers.

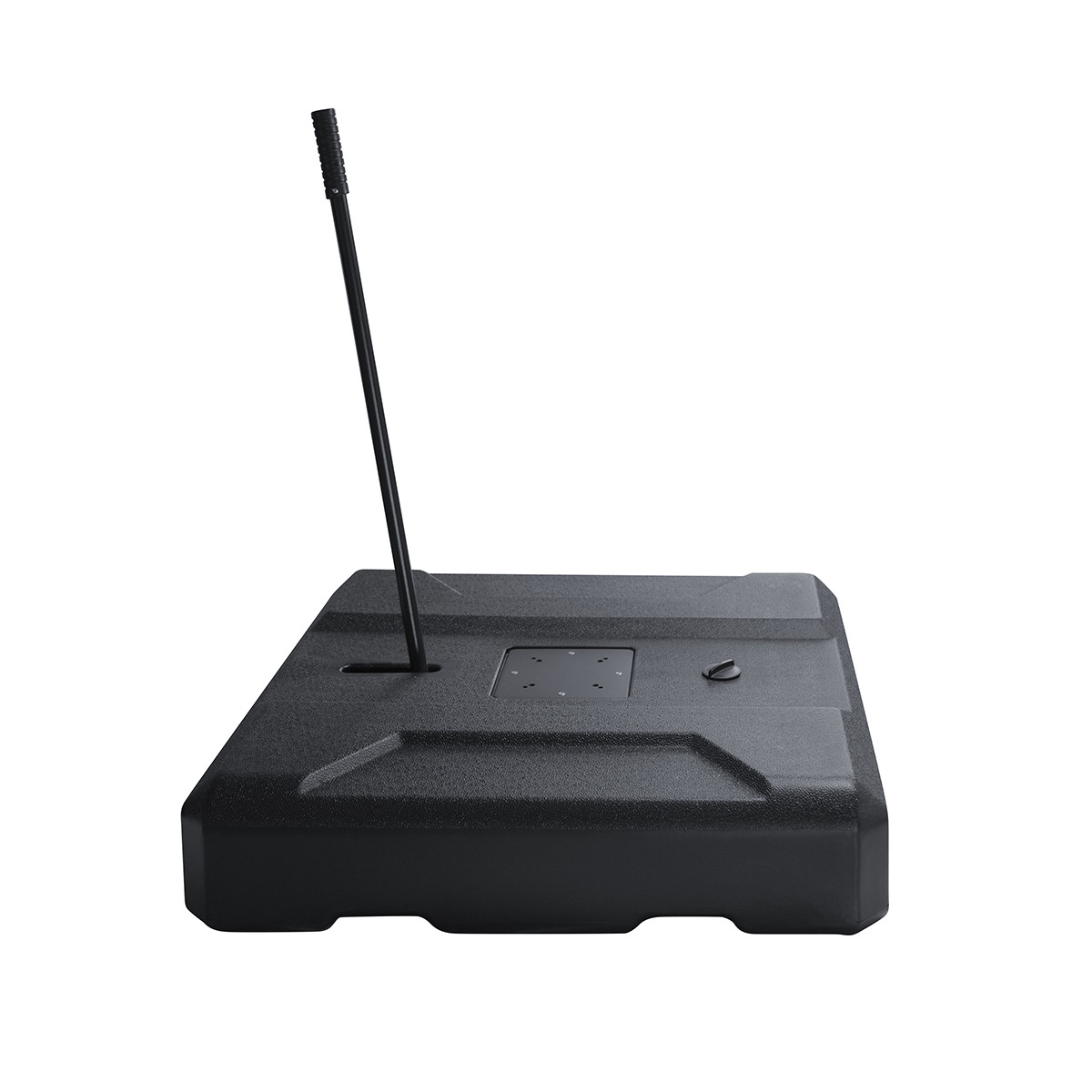

138L Water Base
Large-capacity counterweight with carry handle.
How to Size Your Umbrella Base by Canopy and Pole Type
Match the base to the umbrella, not the other way around. Under-specifying weight is the most common cause of tipping in wind. Use the guide below as a starting point, then add 20–30% for exposed or coastal sites.
| Umbrella type | Canopy size | Recommended umbrella base |
|---|---|---|
| Center pole | ≤ 2.5 m | 10–15 kg resin or fillable base |
| Center pole | 3.0–3.5 m | 18–25 kg base, or in-ground socket |
| Side pole (cantilever) | ≈ 3.0 m | 60 L water base (≈60 kg filled) |
| Side pole (cantilever) | 3.5 m+ | 138–180 L water or bolt-down cross base |
Why Source Your Umbrella Base from a Certified B2B Manufacturer
We are a manufacturer, not a trading middleman. Every umbrella base is built to spec, tested for stability, and supported by documented quality control — the substance behind the Experience, Expertise, Authoritativeness and Trust that B2B buyers need before they commit.
