Premium Commercial LED Center Pole Aluminum Patio Umbrella | 3x3m 4x4m 5x5m with Crank & Swivel
| Share | |
|---|---|
| Categories | LED Outdoor Umbrellas |
| Brand | Foris Hortus |
| Product Specifications | LED Series |
| Main Pole | Natural Anodized Aluminum 86 × 86 × 2.4mm |
| Ribs | Aluminum Alloy 25 × 33 × 1.5mm |
| Fabric | 300G Polyester with PA Coating, UPF 50+ |
| Sizes | 3×3m / 4×4m / 5×5m |
| Opening System | Aluminum Crank Handle |
| Rotation | Aluminum 360° Swivel Mechanism |
| Wind Resistance | Beaufort Scale 4–6 |
| Weight (without base) | 60kg / 75kg / 85kg |
| LED | Integrated LED Strip Lighting in Ribs |
| Customization | OEM Logo on Canopy Corners and Valance |
| FOB port | Ningbo |
| Terms of Payment | L/C, D/A, D/P, Western Union |

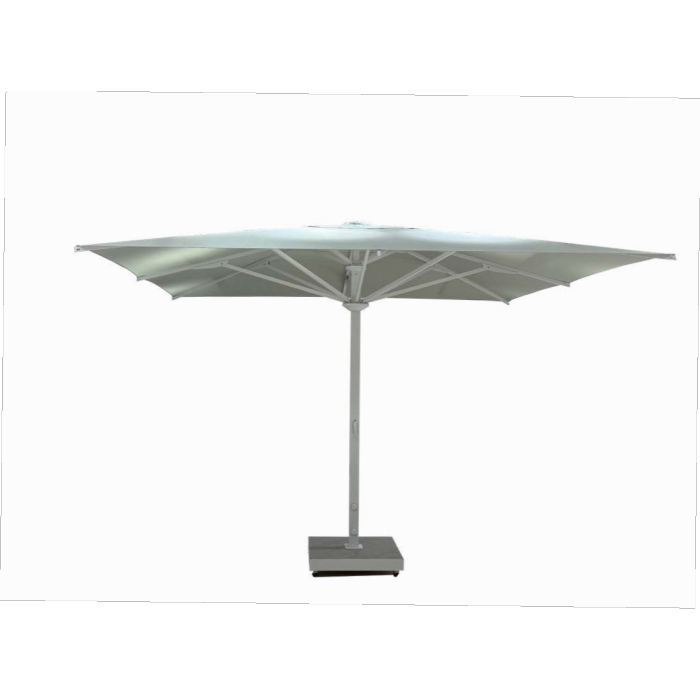

Premium Commercial LED Center Pole Umbrella
A large commercial shade system built for hotels, resorts, restaurants, and upscale outdoor venues. Combines a natural anodized aluminum frame, 300G UPF 50+ fabric, an aluminum crank handle, 360° swivel mechanism, and integrated LED rib lighting.
Request a Quote
Built for Commercial Performance
Every component of this model is engineered to reduce maintenance, simplify daily operation, and create memorable guest experiences from day to night.
UPF 50+ Sun Protection
300G polyester canopy with PA coating blocks harmful UV rays, sheds light rain, and resists fading under intense sun.
Crank & Swivel Operation
Aluminum crank handle opens the canopy smoothly, while the 360° swivel mechanism lets staff follow the sun throughout the day.
Integrated LED Lighting
Warm LED strips built into the ribs extend outdoor seating into the evening — ideal for restaurants, bars, and hotel terraces.
Commercial-Grade Aluminum Frame
Square Anodized Aluminum Pole
86 × 86 × 2.4mm natural anodized aluminum main pole resists corrosion, oxidation, and salt-air environments.
Reinforced Aluminum Ribs
25 × 33 × 1.5mm alloy ribs form a stable triangular load structure for 3×3m to 5×5m canopies.
360° Aluminum Swivel Mechanism
Adjust canopy direction to track the sun and maximize shaded coverage without moving the base.
Waterproof & Fade-Resistant Fabric
PA-coated 300G polyester withstands daily UV exposure and seasonal weather changes.
Easy Crank Operation
The aluminum crank handle reduces opening resistance compared to push-pull systems. One person can raise and lower the large canopy quickly, making this model practical for busy restaurants and hotel staff who operate umbrellas multiple times a day.
- Smoother operation with less force
- Longer service life in commercial use
- Works reliably on 3×3m, 4×4m, and 5×5m sizes

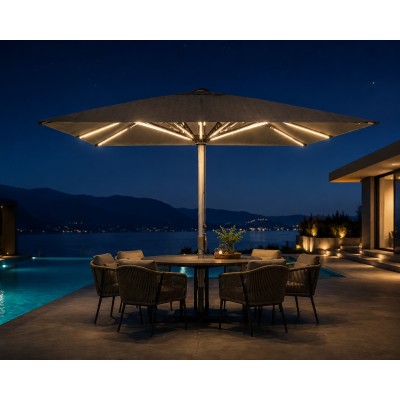

Extend Outdoor Hours with LED
Built-in LED strips run along the ribs and cast warm, even light across
tables and seating areas. The umbrella becomes a daytime shadestructure and a nighttime ambient light source — one product, two revenue windows.
- Warm white ambient glow
- Low energy consumption
- Clean hidden integration into ribs
- Perfect for outdoor dining and lounges
Fabric That Works as Hard as the Frame
The 300G polyester canopy is engineered with a PA coating for water resistance, UV stability, and long-term color retention. Rain beads on the surface, and the UPF 50+ rating protects guests during peak sun hours.
Technical Specifications
| Attribute | Specification |
|---|---|
| Available Sizes | 3×3m / 4×4m / 5×5m |
| Main Pole | Natural Anodized Aluminum 86 × 86 × 2.4mm |
| Ribs | Aluminum Alloy 25 × 33 × 1.5mm |
| Fabric | 300G Polyester with PA Coating, UPF 50+ |
| Opening System | Aluminum Crank Handle |
| Rotation | Aluminum 360° Swivel Mechanism |
| Wind Resistance | Beaufort Scale 4–6 (size dependent) |
| Weight (without base) | 60kg / 75kg / 85kg |
| Base Weight Recommendation | ≥50kg / ≥80kg / ≥120kg |
| Lighting | Integrated LED Strip Lighting in Ribs |
| Customization | Logo on canopy corners and valance |

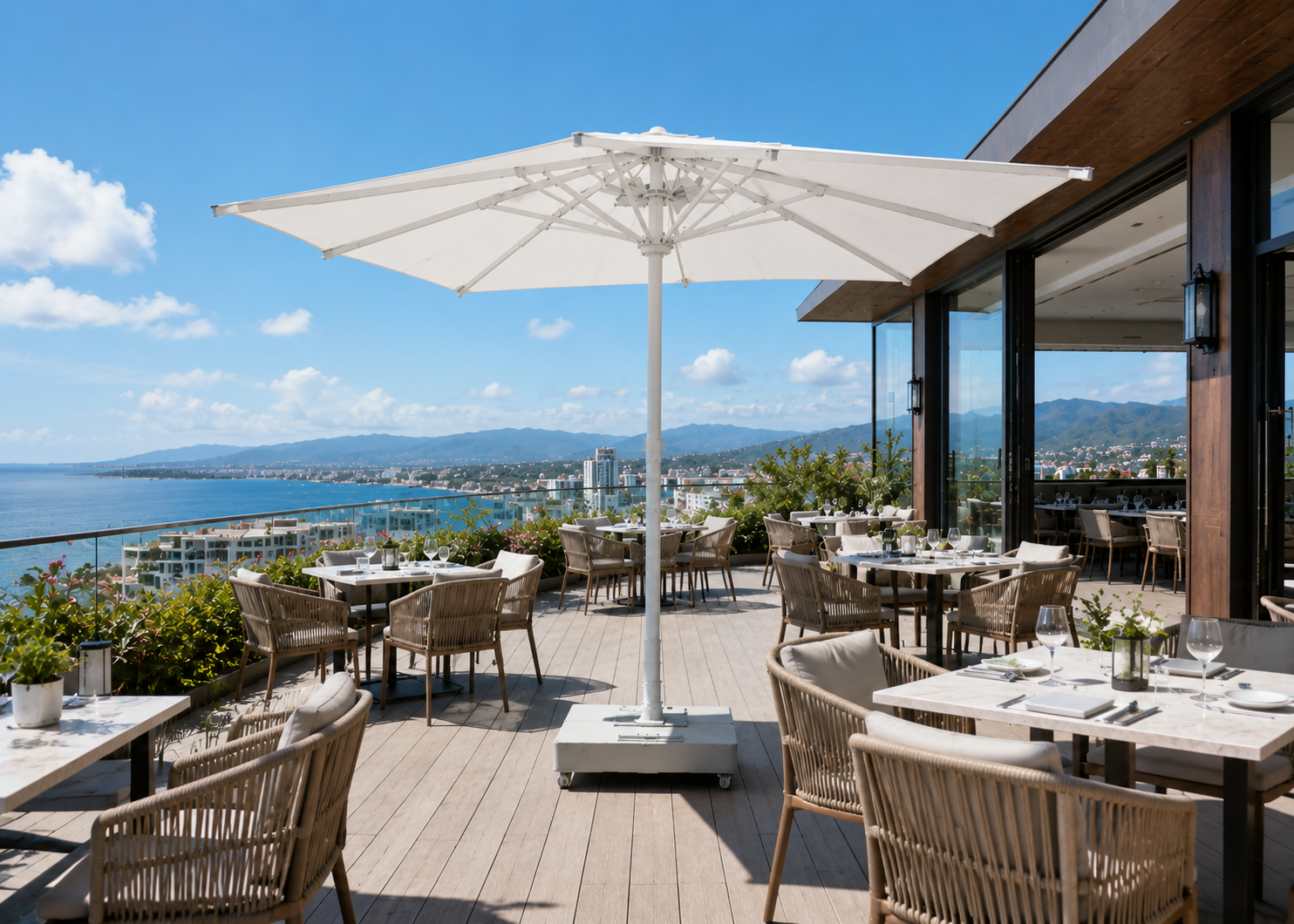

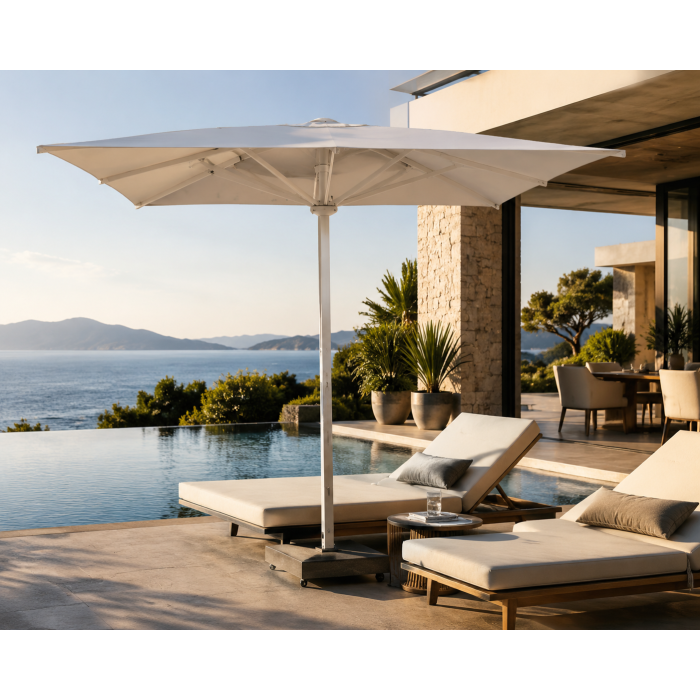

Designed for These Spaces
Ready to Spec this model for Your Project?
Foris Hortus supports OEM/ODM customization including size, canopy color, logo placement, and LED configuration. Contact us for samples, CAD support, and project pricing.
Canopy Fabric Customization
Four benchmark canopy fabrics are available as standard, each selected for outdoor colour stability, weather resistance and commercial service life. Two additional options are available for projects on a different budget. Pick the performance level the project needs - the difference in raw material composition, colouring craftsmanship and weather resistance is what separates a 3-year canopy from a 10-year one.
| Fabric | Material | Colour Fastness | Outdoor Lifespan |
|---|---|---|---|
| Sunbrella | 100% Solution-dyed Acrylic | Grade 7-8 | 10 years+ |
| Sauleda | Acrylic | Grade 4-5 | 3-5 years |
| Feiler | Acrylic | Grade 6 | 5-8 years |
| Olefin | Polypropylene | Grade 4-5 | 3-5 years |
Sunbrella
Premium acrylic imported from the USA - the industry benchmark for hospitality projects.
- 100% solution-dyed acrylic for superior colour fastness and long-lasting vibrancy.
- Grade 7-8 colour fastness and 10 years+ outdoor lifespan.
- UPF 50+ UV shielding with waterproof, stain and mildew resistance.
- Top three colours: White 57003, Silver Grey QCLR073, Grey 54084.
Evercolor
Leading domestic premium outdoor fabric - a cost-effective alternative to imported acrylic.
- Polyester staple-fibre blend with Teflon coating.
- Weight 250 / 320 g per square metre.
- 500 Pa hydrostatic water resistance.
- 5-year outdoor lifespan and 50+ UV protection.
Proprietary Blend
Our in-house developed blend engineered for durability, texture and weather resistance.
- High-density plain weave, yarn-dyed, with optional water-repellent coating.
- Weight 300 g per square metre.
- 500 Pa hydrostatic head for light rain protection.
- 5-year outdoor lifespan; available non-coated or coated.
Full colour cards, physical swatch availability and custom colour matching are available on request - see fabric and colour customization.
Frame Finish Customization
The aluminium frame is offered in three finishes so the umbrella matches the architecture and the brand of the project. All three are applied to marine-grade aluminium and pass a 72-hour salt spray test.
Powder-Coated Finish
Premium powder-coat treatment with a rich colour range. Excellent resistance against fading and chipping, and the most practical choice for coastal and high-traffic sites.
Heat-Transfer Wood-Grain
Realistic timber texture transferred onto aluminium - the warm appearance of wood with no wood maintenance, no rot and no repainting.
Anodized / Oxidation
Durable anodized surface that is scratch-resistant and anti-corrosion, retaining its metallic texture for long-term outdoor use.
Frame dimensions, rib counts and mounting hardware can be adjusted for the project - see frame and structure customization, and logo and branding options.
Frequently Asked Questions
The questions buyers ask most often about this model. Tap a question to read the answer.
What are the main specifications?
This model is specified as Main Pole Natural Anodized Aluminum 86 × 86 × 2.4mm; Ribs Aluminum Alloy 25 × 33 × 1.5mm; Fabric 300G Polyester with PA Coating, UPF 50+; Sizes 3×3m / 4×4m / 5×5m; Opening System Aluminum Crank Handle; Rotation Aluminum 360° Swivel Mechanism. All dimensions and finishes can be adjusted for the project, and the full size range is available on request.
Which sizes and shapes are available?
Round, square and rectangular canopies from 2.5 m up to 4 m and beyond are produced, with 8 ribs as the standard configuration. Vented double-tier and three-tier versions are available where wind resistance and heat dissipation matter.
How does it open and close?
Depending on the model: hand-crank lift, push-pull telescopic pole, pulley rope or gas spring assistance. Larger commercial canopies typically use gas spring assistance so the canopy can be raised and lowered by one person.
Which base fits?
Most center-pole umbrellas use a 38 mm or 48 mm pole and take a resin, concrete or water-filled base. Larger commercial sizes need a heavier base or in-ground anchoring. Match the base to the canopy size and to whether the surface is a patio, deck or lawn.
How does it perform in wind?
A vented double-tier canopy reduces wind load noticeably compared with a single tier, and a three-tier pagoda construction adds further stability. As with any parasol, the correct behaviour in strong wind is to close it - no umbrella is designed to stand in a storm.
Can I choose the canopy fabric?
Yes. Sunbrella solution-dyed acrylic is the premium choice for flagship projects, with Evercolor, our proprietary blend and Olefin as cost-effective alternatives. All options are listed in the fabric section below.
Can my logo be added?
Yes. Logos can be applied to the canopy corners, valance, top plate or handle housing, and frame colours are customizable across the powder-coated range.
How is it packed and what is the warranty?
Mail-order packaging designed to pass an 80 cm drop test, with bases shipped separately to keep the parcel manageable. Outdoor furniture carries a 12-month warranty from the date of loading.
This model is built as a premium commercial led center pole aluminum patio for hotel terraces, resort pool decks and restaurant gardens, with custom sizes, finishes and logo branding available on project orders. It also answers the brief for a commercial patio umbrella for hotels.
