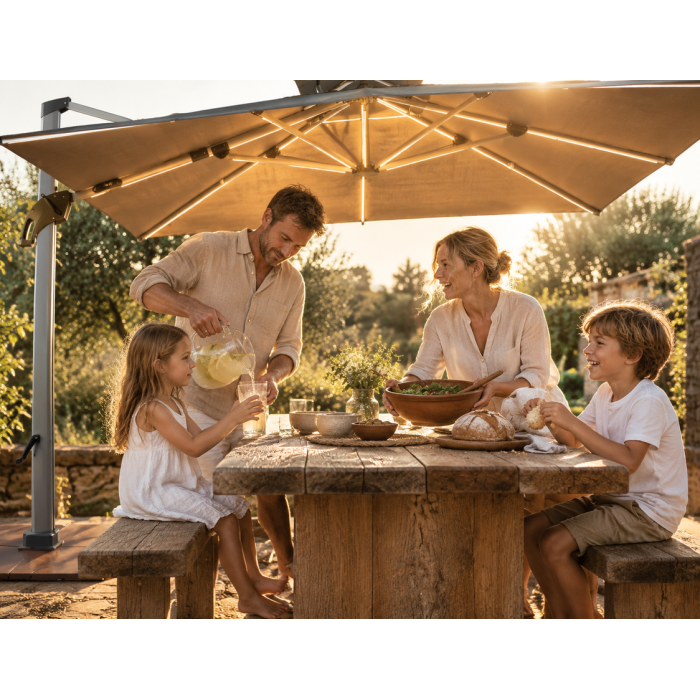

Solar Cantilever Umbrella with LED Ribs, 360-degree Rotation & UV80 Canopy for Hotels and Resorts
| Share | |
|---|---|
| Categories | LED Outdoor Umbrellas |
| Brand | Foris Hortus |
| Model | Baize |
| Color | customizable |
| Size | 3*3M double top | 3*3M | 3*4M |
| Alu Pole | 65*105*2.0mm |
| Alu Rib | 20*30*1.2mm |
| Alu Rod | 35*55*2.0mm | 30*50*2.0mm |
| Fabric | 250-260g yarn-dyed polyester, PU/PA |
| Rotation | Hand-crank 360 degrees |
| Finish | Powder-coated |
| Corrosion Test | 72-hour salt spray |
| Unit Price | US $ 197-198.8 / piece |
| FOB port | Ningbo |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Solar Cantilever Umbrella with LED Ribs, 360° Rotation & UV80 Canopy
Turn every terrace into a day-and-night destination. A solar panel powers warm LED lighting built into the ribs, a smooth 360-degree rotation tracks the sun, and a PU-coated UV80 canopy keeps guests shaded and comfortable from morning coffee to late dinner.
Light Strips on the Ribs
Built-in LED rib lighting delivers a warm ambient glow after sunset, all powered by solar energy - no wires, no outlets.
Smooth 360-degree Rotation
Follow the sun through the day with effortless full-circle rotation and multi-angle tilt for true all-day shade.
UV80+ Sun Protection
Premium PU-coated canopy blocks harmful UV and keeps its colour, built for long commercial seasons outdoors.
Eco-Friendly Power
The integrated solar panel charges by day and lights by night - a smart, wire-free choice for modern outdoor spaces.
Built for Hospitality, Day and Night
Elevate patios, pool decks, hotel terraces and restaurant courtyards in seconds. The cantilever design frees the space underneath - no centre pole in the way - while the solar LED ribs turn every evening into an upscale, glowing experience. Own the atmosphere, day and night.
Canopy Tier, Tilt & Lighting Options

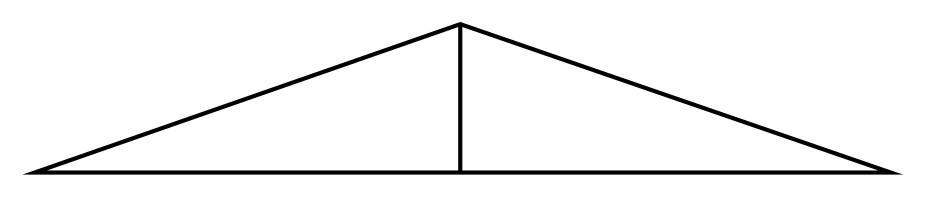

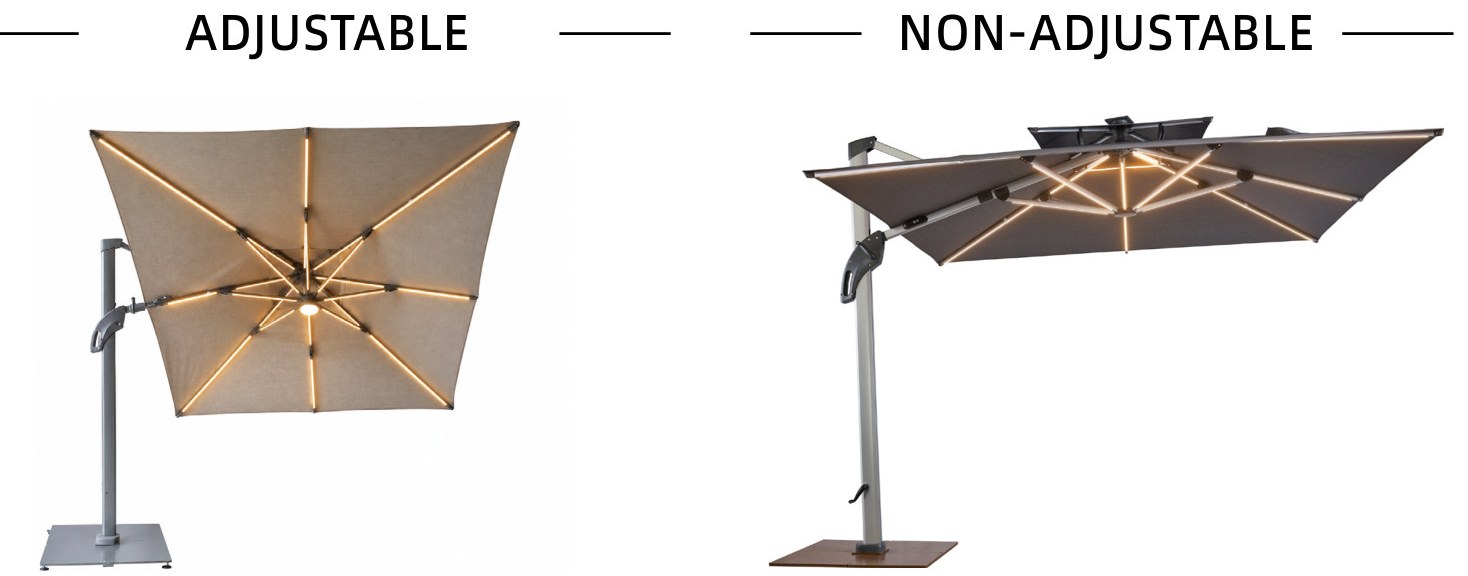

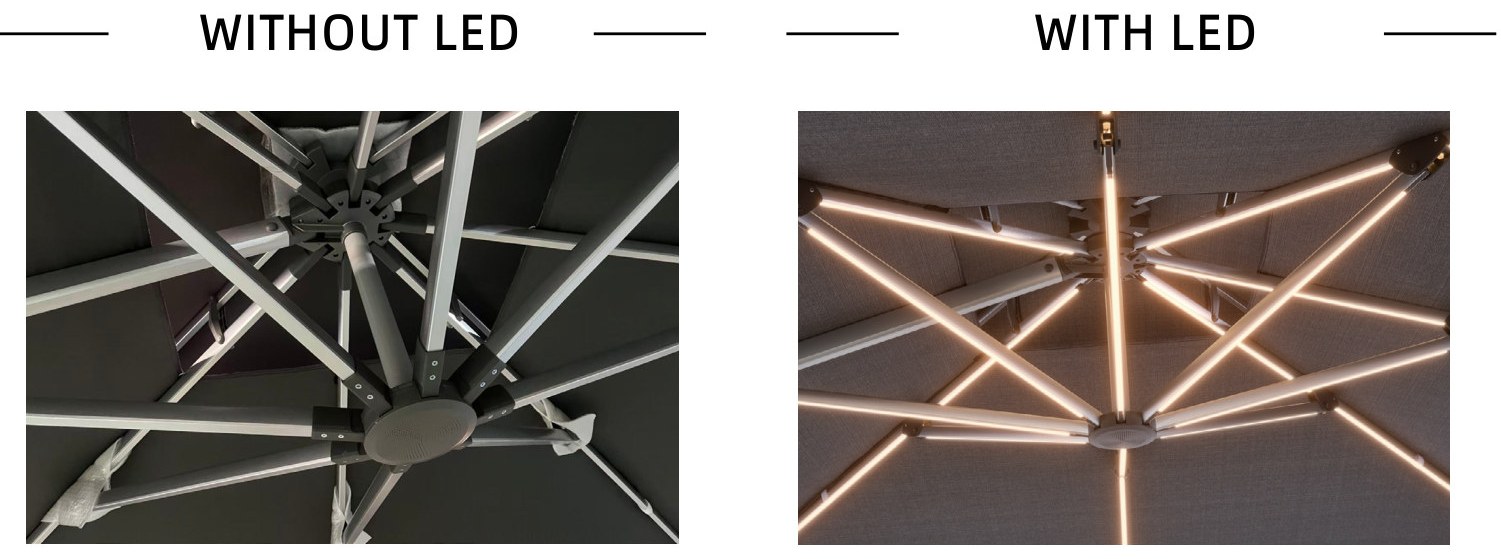

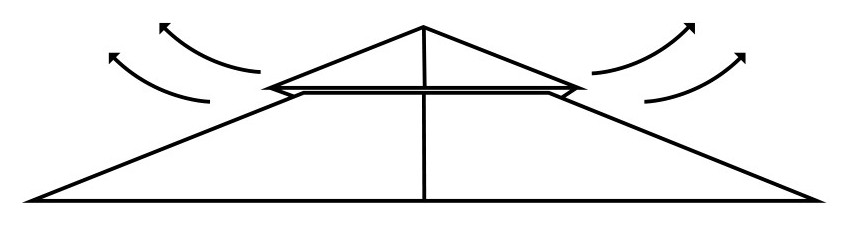

Configure the umbrella exactly the way your project needs: choose a single-tier or vented double-tier canopy, an adjustable or fixed tilt, and a standard or LED-lit version.

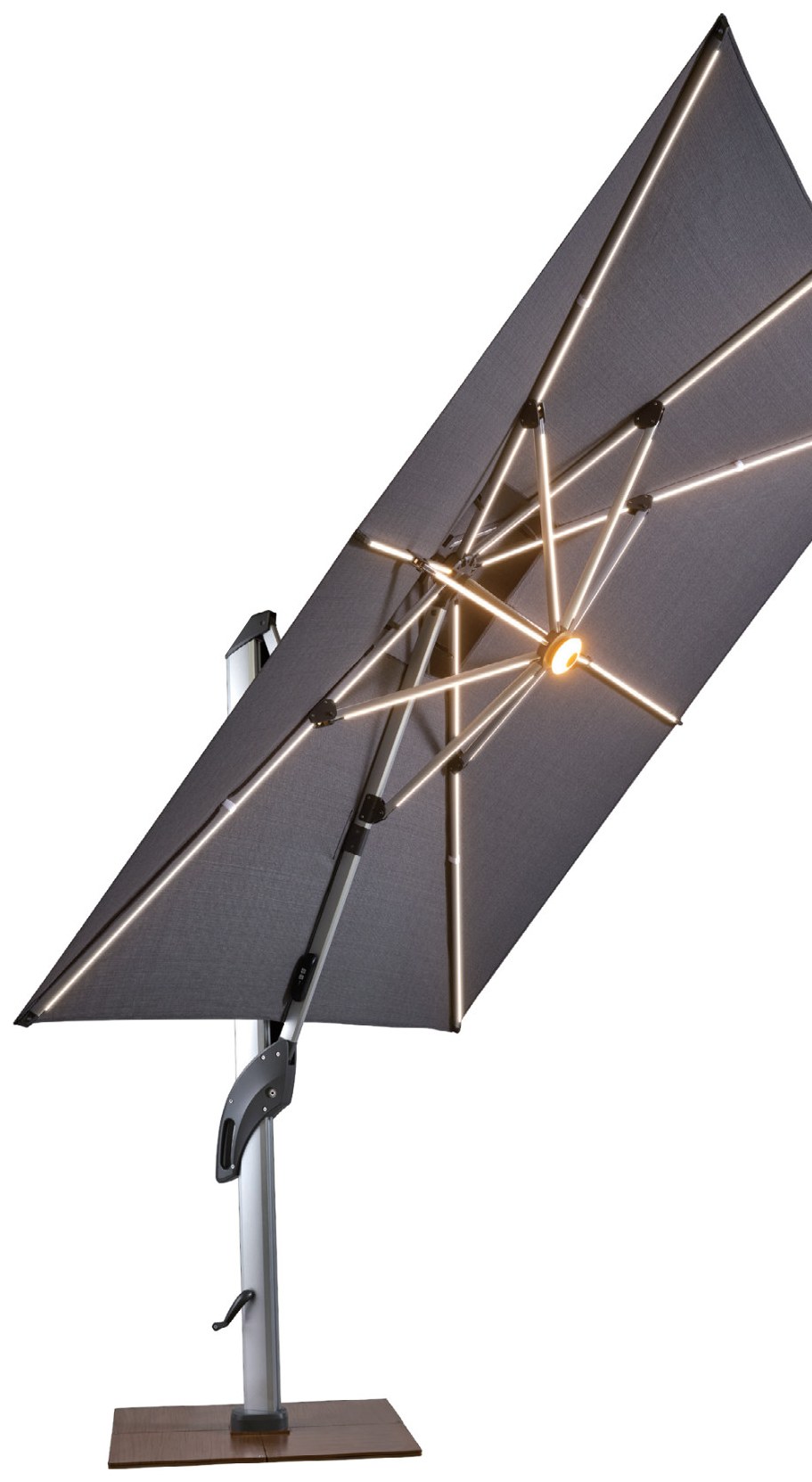

Multi-Angle Tilt in Real Conditions

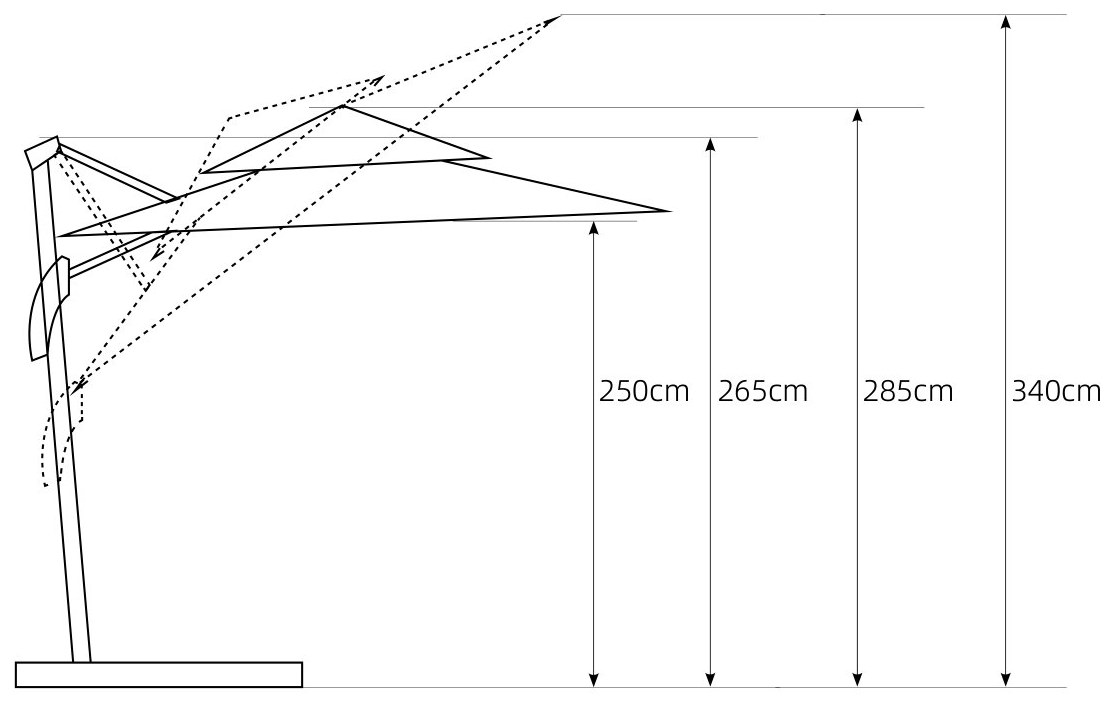

The crank-and-rod mechanism moves the canopy through a wide range of tilt positions, so the shade follows the sun instead of the sun following you. Combined with the LED ribs, one umbrella covers the morning coffee service, the afternoon pool deck and the evening terrace dinner.
Available Configurations
The platform is produced in three standard configurations, sharing the same frame engineering so you can mix sizes and canopy styles across one project.
| Configuration | Canopy | Canopy Fabric | Coating |
|---|---|---|---|
| A1 | 3*3 m double top | 260 g yarn-dyed polyester, UV80, 5-year colour fastness | PU coating |
| A2 | 3*3 m single top | 250 g yarn-dyed polyester | PA coating |
| A3 | 3*4 m single top | 250 g yarn-dyed polyester | PA coating |
The A1 double top includes a matching fabric umbrella cover in the same material and colour as the canopy.
Sizes, Weights & Performance Data

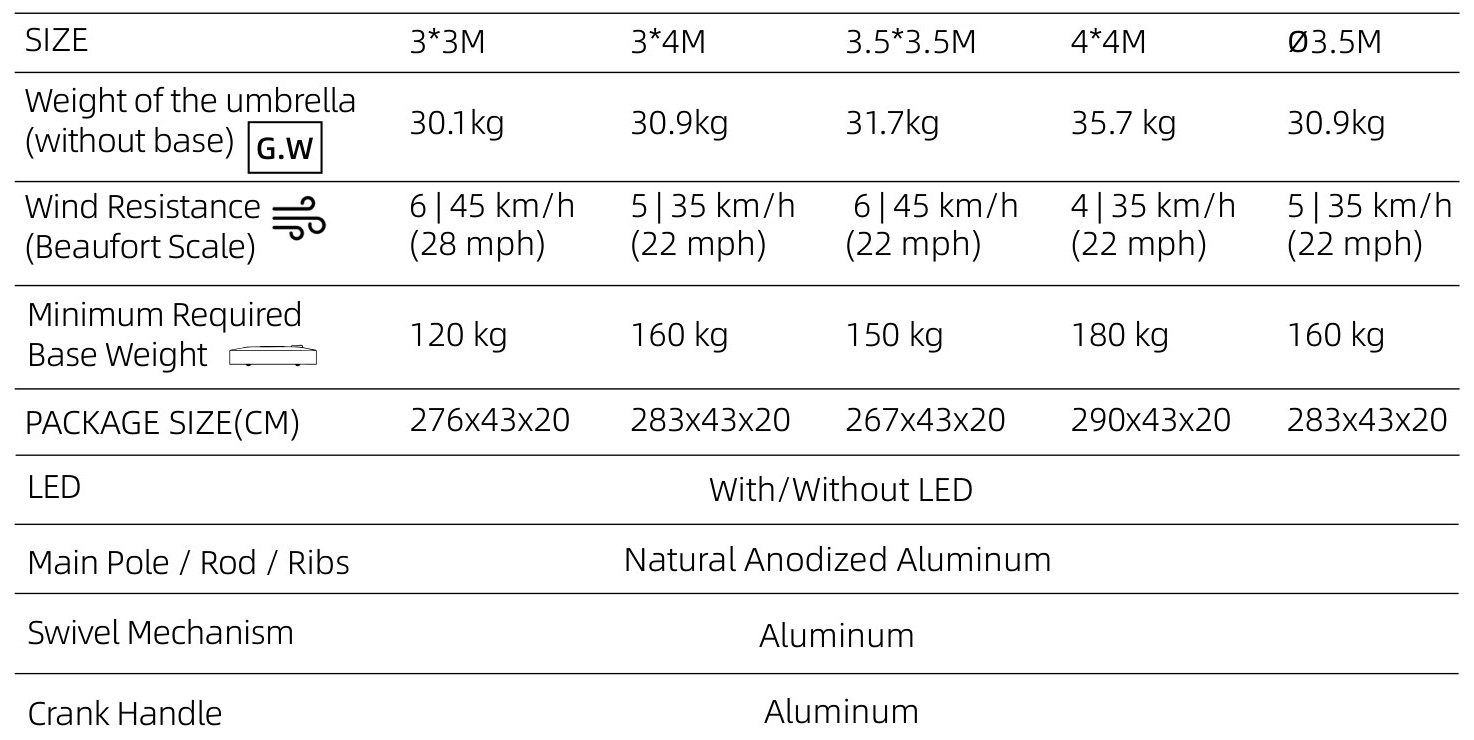

The platform covers five canopy sizes - 3*3 m, 3*4 m, 3.5*3.5 m, 4*4 m and round 3.5 m. The chart below summarises unit weight, wind resistance on the Beaufort scale, the minimum recommended base weight and the mail-order package size for each option.

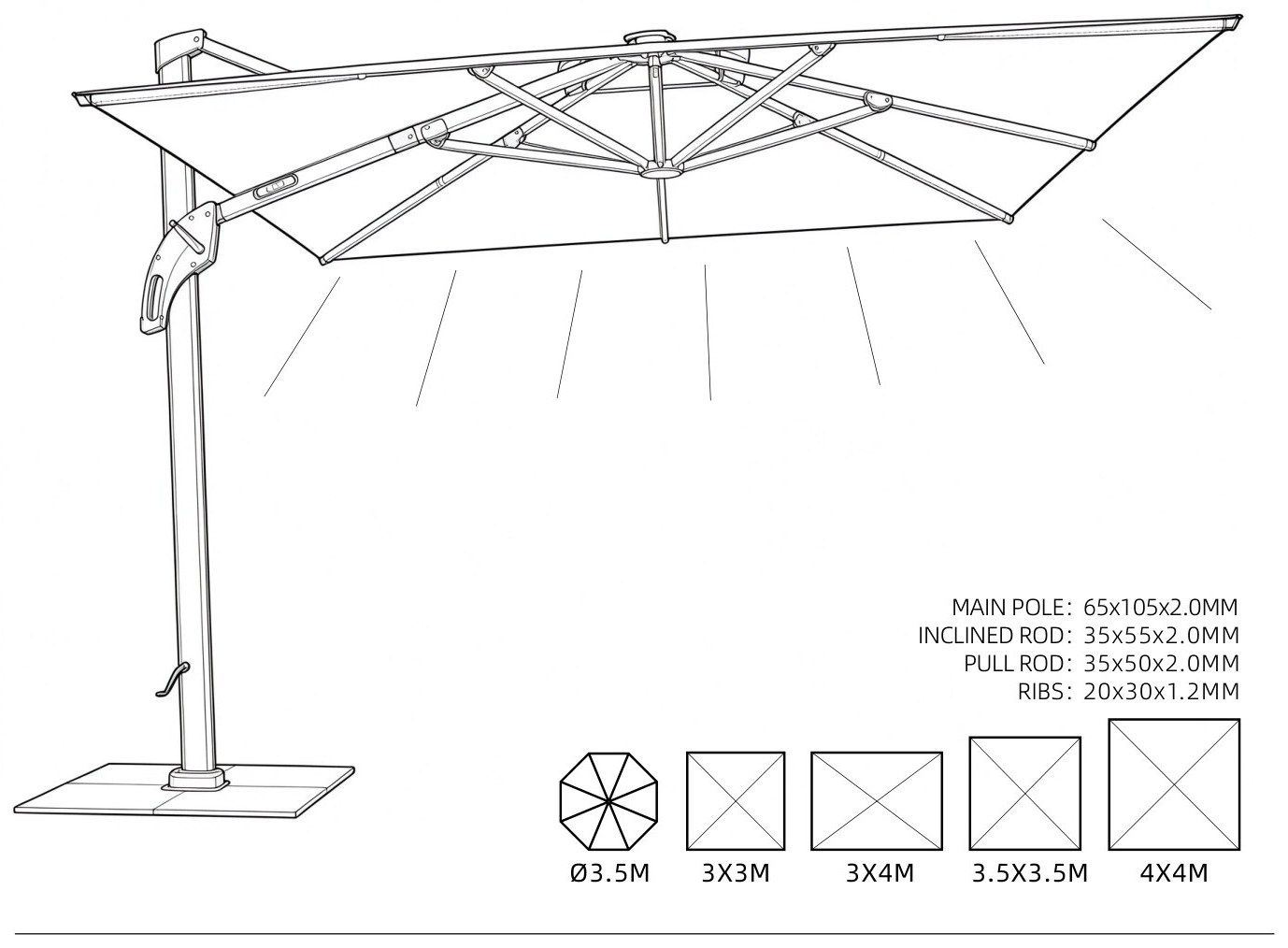

Technical Specifications
| Aluminium Pole | 65*105*2.0 mm |
| Aluminium Tilt Rod | 35*55*2.0 mm |
| Aluminium Pull Rod | 30*50*2.0 mm |
| Umbrella Ribs | 8 shaped aluminium ribs, 20*30*1.2 mm |
| Rotation | Hand-crank 360-degree rotation cylinder |
| Handle & Top | Torch-style aluminium handle housing, aluminium top plate and aluminium components |
| Frame Finish | Powder-coated spray finish |
| Valance | None - clean straight-edge canopy |
| Lighting | Integrated solar LED ribs |
| Corrosion Test | 72-hour salt spray test |
| Packaging | Mail-order packaging, passes 80 cm drop test |
| Base | Not included - see base options |
| Colour | Customizable |
Custom Branding & Base Options

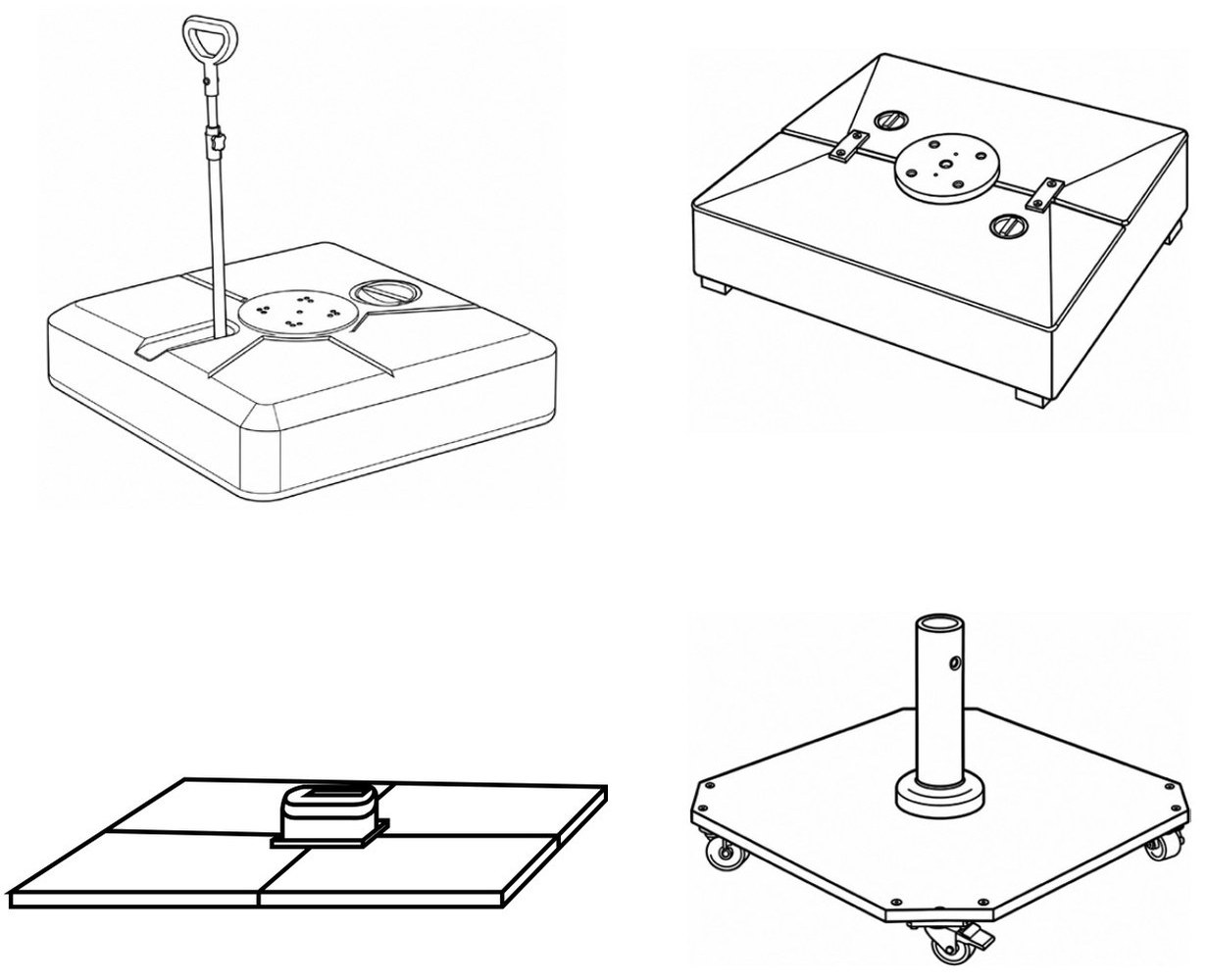

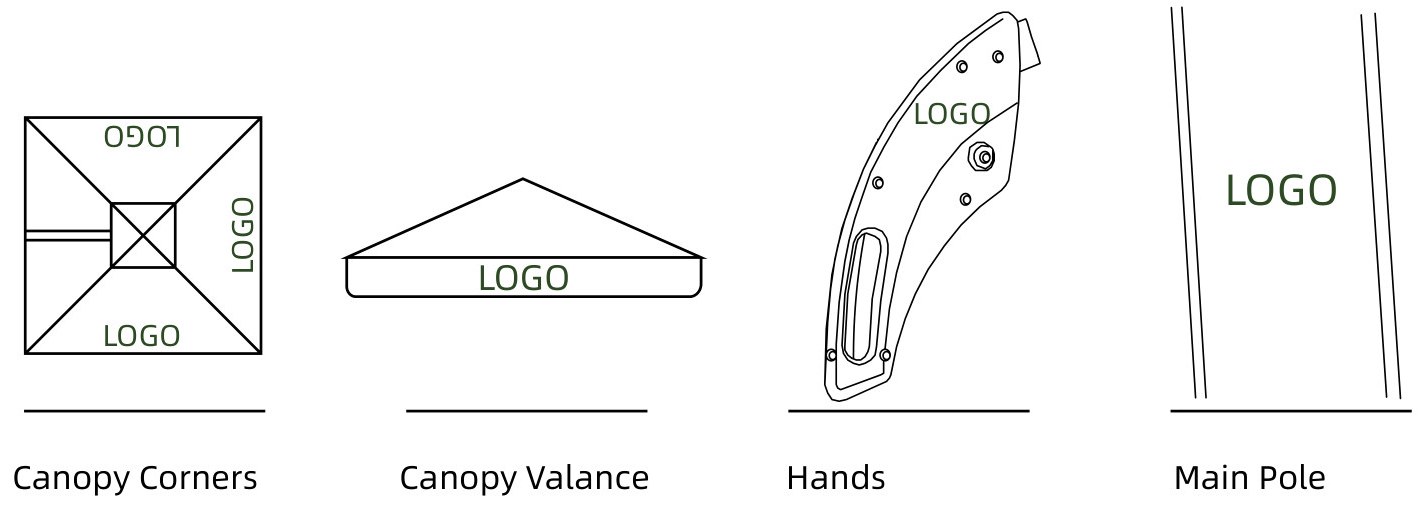

Make the umbrella yours: your logo can be applied to the canopy corners, valance, handle housing or main pole, and four matching base types keep every size safely anchored.
Outdoor Umbrella FAQ
What is a cantilever umbrella and how is it different?
A cantilever umbrella has an offset pole and a side-mounted canopy that provides unobstructed shading. Unlike centre-pole umbrellas, it maximizes usable space underneath.
Is it suitable for commercial outdoor use?
Yes. It is built for high-traffic environments such as hotels and restaurants, with a heavy-duty aluminium frame and UV-resistant canopy.
What materials are used for the frame and canopy?
The frame is powder-coated aluminium for durability and rust resistance. The canopy is solution-dyed polyester or acrylic with UV protection and colourfastness.
Can it rotate or tilt to follow the sun?
Yes. It offers 360-degree rotation and multi-angle tilting for optimal shade coverage throughout the day.
Which fabric should I choose?
For flagship projects choose Sunbrella (10-year+ lifespan). Evercolor and our proprietary blend offer excellent performance at a sharper budget; Olefin suits seasonal or lower-intensity use.
Quality Guarantee
- 12-month warranty on outdoor furniture from the date of loading, with third-party inspection supported before shipment.
- Buyers may arrange professional inspection within one month of receipt; major quality issues are returned to the factory with freight covered.
- Quality satisfaction target: over 95% for neutral products, over 98% for OEM orders produced to buyer specification.
- Confirmed production quality issues within three months are resolved with replacement accessories and freight handled by the seller.
Request a Quotation for the Baize Solar Umbrella
Tell us your canopy size, fabric and pole finish - we return a quote within one working day.
Choose Your Canopy Fabric
Four benchmark canopy fabrics are available as standard. Each is selected for outdoor colour stability, weather resistance and commercial service life. Pick the level of performance your project needs.
| Fabric | Material | Colour Fastness | Outdoor Lifespan |
|---|---|---|---|
| Sunbrella | 100% Solution-dyed Acrylic | Grade 7-8 | 10 years+ |
| Sauleda | Acrylic | Grade 7-8 | 5-8 years |
| Feiler | Acrylic | Grade 6 | 5-8 years |
| Olefin | Polypropylene | Grade 4-5 | 3-5 years |
Beyond these benchmark fabrics, we also offer two additional canopy options tailored to different budgets and projects - see below.

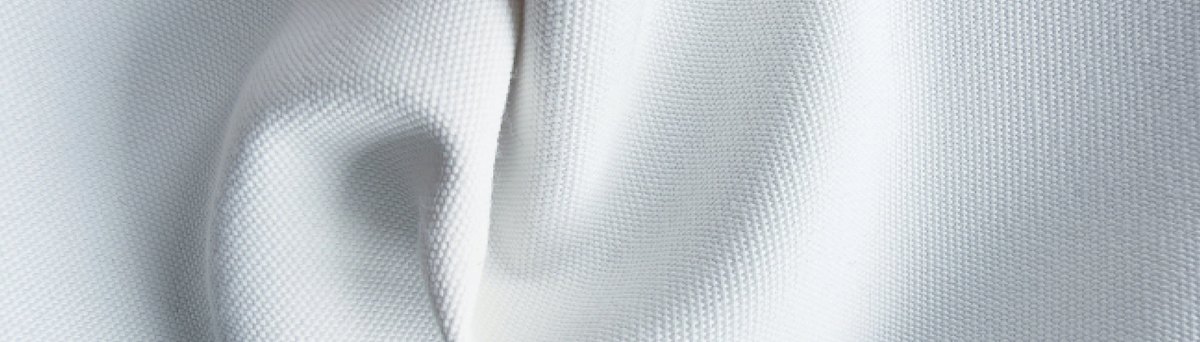

Sunbrella
Premium acrylic imported from the USA - the industry benchmark.
- 100% solution-dyed acrylic for superior colour fastness and long-lasting vibrancy.
- UPF 50+ UV shielding with waterproof, stain and mildew resistance.
- Soft, breathable weave that feels premium in any setting.
- Top three colours: White 57003, Silver Grey QCLR073, Grey 54084.

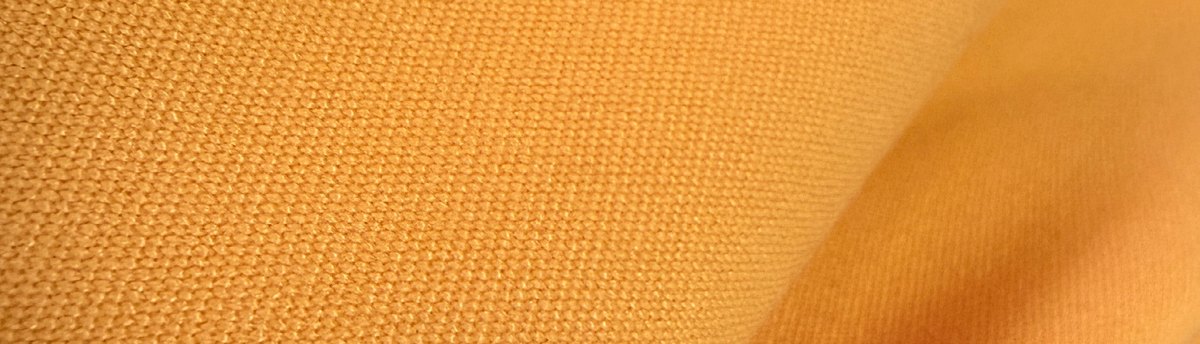

Evercolor
Leading domestic premium fabric - a cost-effective alternative to imported acrylic.
- Polyester staple-fibre blend with Teflon coating.
- Weight 250 / 320 g per square metre.
- 500 Pa hydrostatic water resistance.
- 5-year outdoor colour fastness.

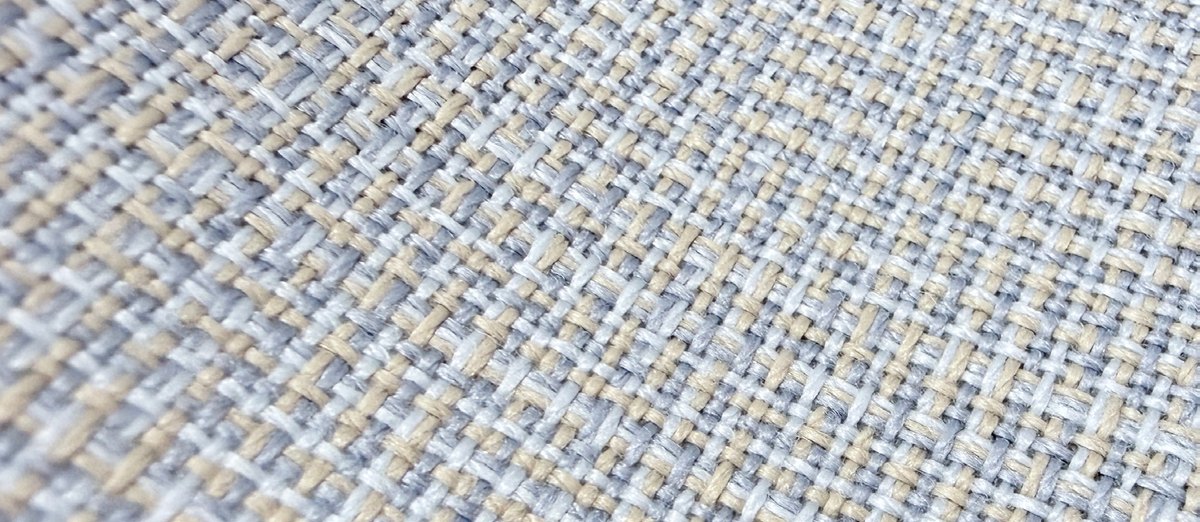

Proprietary Blended Fabric
In-house developed blend engineered for durability and weather resistance.
- High-performance polyester with functional fibres.
- Weight 300 g per square metre.
- 500 Pa hydrostatic head with water-repellent coating for light rain.
- 5-year outdoor lifespan; available non-coated or coated.
Pole Finish Options
The aluminium frame is offered in three finishes so the umbrella matches your architecture and brand.
Powder-Coated Finish
A durable solid-colour coating in a wide RAL range for a clean, modern look and strong corrosion resistance.

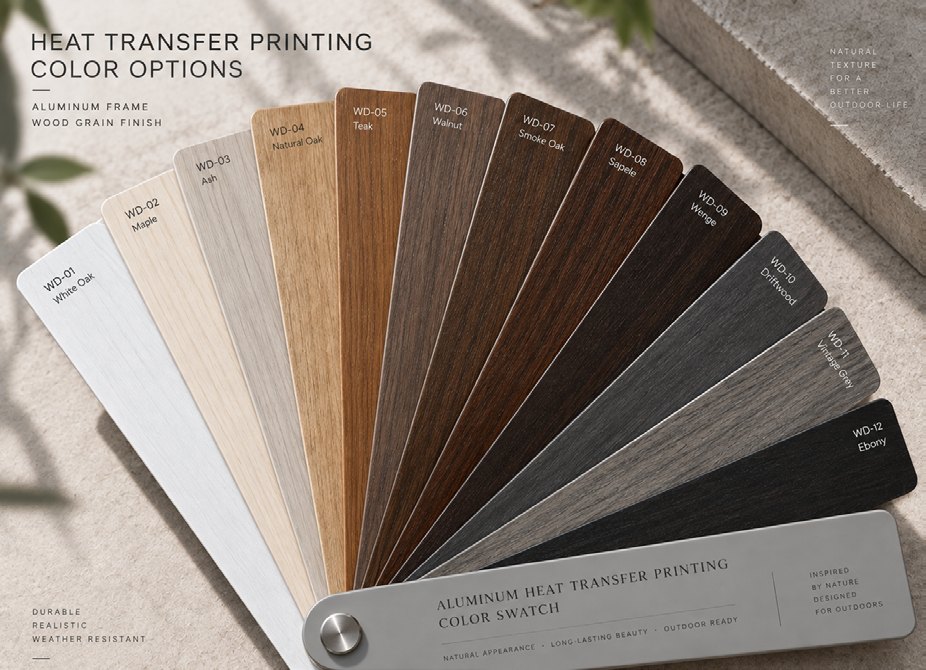

Heat-Transfer Wood-Grain
A realistic timber texture over aluminium - the warm look of wood with none of the maintenance or rot.
Anodized / Oxidation
A natural metallic surface that is highly corrosion-resistant, low-maintenance and quietly premium.
