Premium 360° LED Cantilever Patio Umbrella Multi-Angle Adjustable Tilt Roman Parasol
The Roman Cantilever, Re-engineered for B2B
FHUM099 is a side-post cantilever umbrella with a natural-anodized aluminum frame, available from Ø3 m through 4×4 m, plus a 3×3 m double-tier variant. The side-mounted support removes the center pole, freeing every square meter underneath for tables, loungers and foot traffic. The 360° rotation and multi-angle tilt let operators follow the sun across the day, while the optional LED ribs convert the same asset into evening ambience after sunset.
Where it fits: hotel pools, beach clubs, resort gardens, restaurant terraces, villa patios and rooftop lounges. The Roman profile, paired with PA-coated 250 g polyester, gives commercial venues a high-end look that stays consistent through multi-year outdoor service.
FAB 1 — Side-post cantilever frame
Unobstructed floor plan, no center pole to dodge
Feature: Side-mounted aluminum support arm holds the canopy away from the base, leaving a clean rectangle or circle of shade below.
Advantage: Operators can place 4-seat tables, loungers or buffet stations without a pole in the middle; staff and guests move freely.
Benefit: Maximum usable floor area on every patio — typically 18-25% more seating space than a center-pole umbrella of the same footprint.
FAB 2 — 360° canopy rotation
Track the sun without dragging the base
Feature: The canopy rotates 360° around the vertical axis with a smooth foot-pedal or hand-crank mechanism.
Advantage: Operators re-aim shade in seconds as the sun moves, instead of repositioning a 140 kg base.
Benefit: Continuous coverage from late breakfast through sunset — the same table stays in shade for the full service, lifting average dwell time.
FAB 3 — Multi-angle adjustable tilt
Match low-angled morning and evening sun
Feature: Multi-angle tilt adjustment lets the canopy lean forward or back beyond a fixed 90°.
Advantage: Catches sun angles that a vertical-only canopy misses — early-morning east light and late-afternoon west light.
Benefit: Guests stay comfortable from sunrise service to last-call drinks; one asset covers a longer daily trading window.

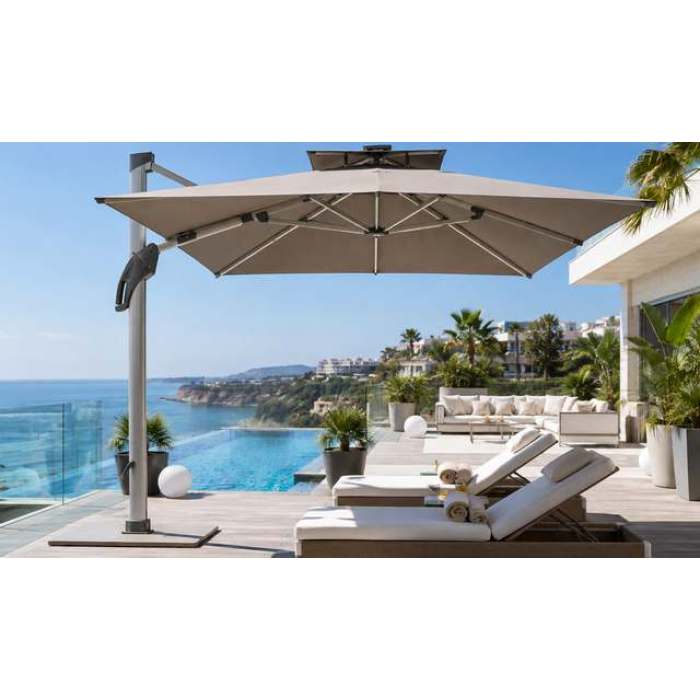

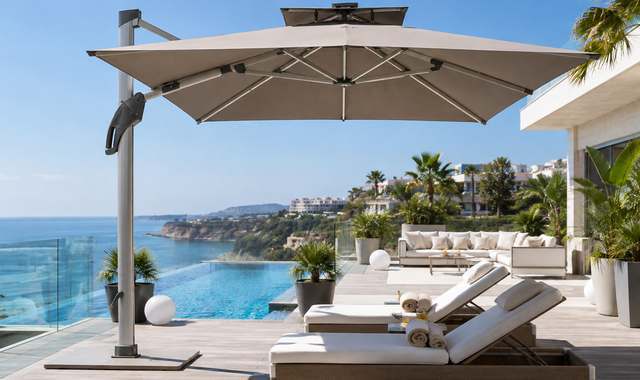

Pool-deck configuration: side-post cantilever keeps the entire lounger row in shade without splitting the deck.
FAB 4 — Single or double-tier canopy
Match the canopy to the wind and the venue
Feature: Choose a single-layer canopy for traditional shade, or the 3×3 m double-tier variant for high-exposure sites.
Advantage: The double-tier top vent channels wind through the umbrella, lowering uplift forces and letting hot air escape.
Benefit: Beach, rooftop and hilltop operators gain a cooler underside and a noticeably steadier canopy on gusty days.
FAB 5 — Integrated LED ribs
Shade by day, ambience by night — one asset, two revenue windows
Feature: LED strips run along each rib, integrated into the canopy structure with the same wiring path as the tilt mechanism.
Advantage: The umbrella converts from a daytime shade structure into warm evening ambience without a separate lighting rig.
Benefit: Restaurant and rooftop operators extend the outdoor trading day, capturing dinner and late-night covers that would otherwise move indoors.

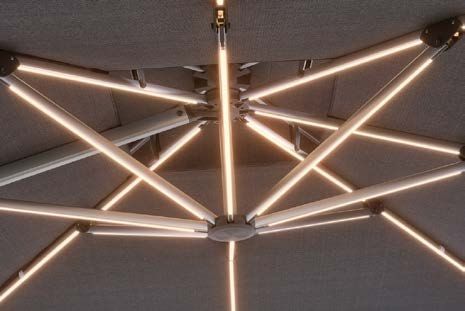

LED option: each rib lit evenly, transformer concealed inside the main pole for a clean fit-out.

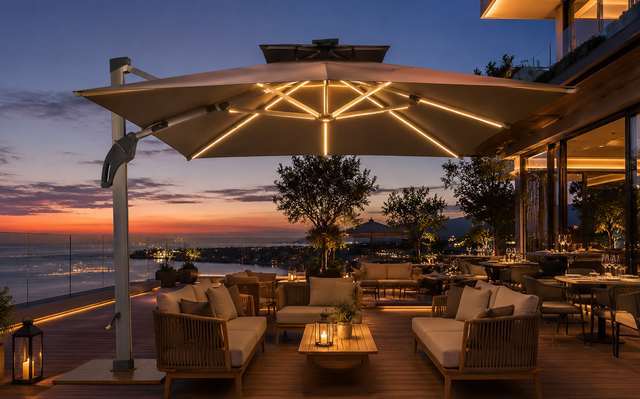

Sea-view terrace: 360° rotation lets the host re-aim the canopy as the sun drops behind the cliff line.
FAB 6 — Natural-anodized aluminum frame
Built for daily commercial use, not seasonal storage
Feature: Main pole (65×105×2.0 mm) in natural-anodized aluminum, plus aluminum swivel mechanism and crank.
Advantage: The anodized layer resists pitting, salt-air corrosion and UV chalking far better than painted or galvanized steel.
Benefit: Beachfront and poolside installations keep their appearance over multiple seasons, lowering the lifetime replacement cost.
FAB 7 — 250 g polyester with PA coating
Stable shade and a premium hand-feel
Feature: 250 g/m² solution-dyed polyester with a PA (polyamide) coating for water repellency and color fastness.
Advantage: Heavier than standard 180 g stock polyester; the PA coating sheds brief rain and resists fading in strong UV.
Benefit: Guests feel a denser, more premium fabric; operators see fewer replacements over a typical 3-5 year service life.

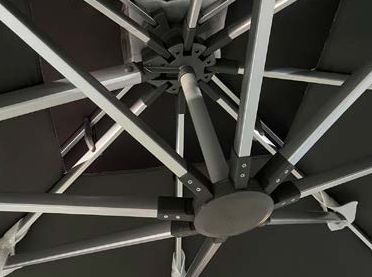

Internal hub: aluminum castings, stainless fasteners, no exposed welds to corrode.
FAB 8 — Three base options, one umbrella
Fit the base to the floor, not the floor to the base
Feature: Choose water-tank base, cross-tile base or iron-plate base, from 120 kg to 180 kg depending on size.
Advantage: Water-tank bases can be filled on site, lowering shipping cost; cross-tile and iron-plate bases give a permanent look for fixed installations.
Benefit: Project managers spec the right base for every location — removable for event venues, permanent for hotel decks.
FAB 9 — Custom logo on canopy, valance, handle or pole
Turn the umbrella into a brand asset
Feature: Logo customization on canopy corners, valance, handle and main pole.
Advantage: Each installation becomes a visible brand touchpoint for hotel groups, restaurant chains and beach clubs.
Benefit: The umbrella moves from utility infrastructure into the marketing mix, reinforcing brand recall every sunny hour.
FAB 10 — Six sizes, one product family
One spec sheet covers the entire patio
Feature: Ø3 m, 3×3 m, 3.5×3.5 m, 3×4 m, 4×4 m, plus 3×3 m double-tier.
Advantage: Project buyers can standardize on a single vendor for intimate 2-seat tables through 8-seat dining setups.
Benefit: Lower procurement overhead, consistent visual language across the property, one warranty and one service contact.
Technical specifications
| Model | FHUM099 — Premium Roman cantilever umbrella |
|---|---|
| Type | Cantilever / Roman umbrella, side-post |
| Rotation | 360° canopy rotation |
| Tilt | Multi-angle adjustable tilt |
| Canopy options | Single-tier or double-tier (3×3 m Double) |
| Sizes | Ø3 m, 3×3 m, 3.5×3.5 m, 3×4 m, 4×4 m, 3×3 m Double |
| Main pole | Natural anodized aluminum, 65×105×2.0 mm |
| Inner pole | 35×55×2.0 mm |
| Telescopic rod | 25×30×2.0 mm |
| Slider rod | 20×30×1.2 mm |
| Crank and swivel | Aluminum crank, aluminum swivel mechanism |
| Fabric | 250 g/m² polyester with PA coating |
| LED option | Integrated LED on each rib (with / without) |
| Wind tolerance | 35-45 km/h depending on size (Beaufort 4-6) |
| Recommended base | 120 kg (3×3 m) — 180 kg (4×4 m); 140-160 kg for 3×3 m Double |
| Base options | Water-tank base, cross-tile base, iron-plate base |
| Net weight | 34-40 kg (without base) |
| Logo customization | Canopy corners, valance, handle, main pole |
| Typical sites | Hotel pool, beach club, restaurant terrace, resort garden, villa patio, rooftop lounge |
Wind tolerance by size
| Size | Beaufort | Wind speed | Recommended minimum base |
|---|---|---|---|
| 3×3 m | Beaufort 6 | 45 km/h | 120 kg |
| 3×4 m | Beaufort 5 | 35 km/h | 160 kg |
| 4×4 m | Beaufort 4 | 35 km/h | 180 kg |
| 3×3 m Double | Beaufort 5 | 45 km/h | 140-160 kg |
Tested in a controlled wind-tunnel environment. Real-site wind exposure, gust direction and base anchoring must be assessed locally; do not treat lab figures as the safe operating limit in every climate.
Where FHUM099 performs best
Poolside lounge
Side-post frame leaves lounger rows completely unobstructed; 360° rotation follows the sun across the deck.
Restaurant terrace
Multi-angle tilt covers late-afternoon west light; LED ribs extend trading into dinner service.
Resort garden
Custom logo on valance and pole turns the umbrella into a brand asset across the property.
Beach club
Double-tier option vents coastal gusts; anodized aluminum resists salt-air corrosion.
Villa patio
Water-tank base allows repositioning with the seasons; premium look matches high-end residences.
Rooftop lounge
Low visual profile at rest; LED transforms the rooftop into an evening destination.
Why hospitality buyers choose FHUM099
- One product family, six sizes — from intimate 2-seat setups to 8-seat dining islands, with the same warranty and the same visual identity.
- Day-and-night asset — LED ribs convert the canopy from a shade structure to evening ambience, doubling the asset's daily contribution.
- Project-friendly logistics — water-tank bases fill on site, lowering shipping cost and simplifying installation.
- Built for commercial duty cycles — anodized aluminum, PA-coated 250 g polyester and Beaufort 4-6 wind tolerance for daily use, not seasonal storage.
Frequently asked questions
Q1. What is the difference between FHUM099 and a center-pole umbrella?
A. FHUM099 is a side-post cantilever. The support arm holds the canopy from the side, leaving the entire shaded rectangle free of poles — typically 18-25% more usable space than a center-pole umbrella of the same footprint.
Q2. Does the LED option need a separate electrician?
A. No. The LED transformer is integrated inside the main pole. Operators connect a single standard outdoor power lead; no external driver is required.
Q3. What base do I need for a 3×3 m installation?
A. 120 kg minimum for a 3×3 m single-tier canopy. The 3×3 m double-tier variant needs 140-160 kg. Larger sizes scale to 180 kg.
Q4. Can the logo be printed in our brand colors?
A. Yes. We match PMS colors on canopy corners, valance, handle and main pole. Send us your brand book and we will return a digital mock-up for approval.
Q5. Is FHUM099 suitable for coastal sites?
A. Yes. The natural-anodized aluminum and stainless fasteners are specified for salt-air exposure. For permanent coastal installations we recommend the double-tier variant to vent stronger onshore gusts.
Spec FHUM099 for your project
Send us your venue layout, expected wind exposure and brand guidelines. We will return a tailored quotation with size, base and fabric recommendations within one business day.
- Size and layout recommendation for your floor plan
- Base selection for your floor type (wood, tile, concrete)
- Custom logo mock-up on canopy, valance or pole
- Ex-works and CIF quotation to your destination port
Contact our project team today and let FHUM099 shade your next outdoor venue.
