FHUM103 Premium Commercial Center Pole Umbrella
Built for hotels, resorts, restaurants, and upscale outdoor venues. Available in 3×3m, 4×4m, and 5×5m with optional LED lighting for all-day ambiance.
Request a Quote
Built for Commercial Performance
Every detail of the FHUM103 is designed to reduce maintenance, improve guest comfort, and withstand real-world outdoor use.
UPF 50+ Sun Protection
250G polyester fabric with PA coating blocks harmful UV rays, keeping guests comfortable and extending the life of outdoor furniture.
Hydraulic-Assisted Opening
Premium gas struts reduce opening force. One person can open even the 5×5m canopy quickly and smoothly.
Optional LED Lighting
Warm LED strips along the ribs turn the umbrella into an evening focal point, extending outdoor seating hours.
Commercial-Grade Materials
Natural Anodized Aluminum Pole
Φ80 × 2.5mm main pole resists corrosion and oxidation for years of outdoor use.
Reinforced Aluminum Ribs
20 × 30 × 1.2mm alloy ribs balance light weight with high wind resistance.
Pull-Down Easy Open Handle
Ergonomic handle design lets staff operate the umbrella with minimal effort.
Waterproof & Fade-Resistant Fabric
PA-coated polyester sheds rain and resists aging, even under intense sun.

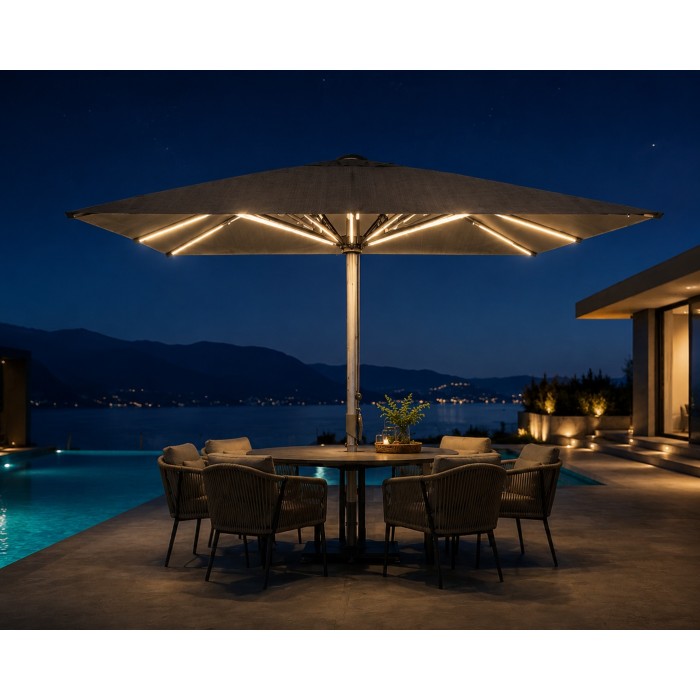

Extend Outdoor Hours with LED
Choose the standard canopy or the LED-lit version. Integrated LED strips cast soft, warm light along the ribs — perfect for nighttime dining,hotel terraces, and resort lounges.
- Soft ambient lighting
- Low energy consumption
- Clean integration into ribs
Fabric That Works as Hard as the Frame
The 250G polyester canopy is engineered with a PA coating for water resistance, UV stability, and long-term color retention. Rain beads on the surface, and the UPF 50+ rating protects guests during peak sun hours.
UPF 50+
Water Resistant
Fade Resistant
One-Person Operation
The pull-down easy-open handle is paired with a hydraulic-assisted gas-strut system. Opening the large canopy no longer requires multiple staff members or excessive force, which improves daily operational efficiency.
Technical Specifications
| Attribute | Specification |
|---|
| Model | FHUM103 (Jiamusi) |
| Available Sizes | 3×3m / 4×4m / 5×5m |
| Main Pole | Natural Anodized Aluminum Φ80 × 2.5mm |
| Ribs | Aluminum Alloy 20 × 30 × 1.2mm |
| Fabric | 250G Polyester with PA Coating, UPF 50+ |
| Opening System | Hydraulic-Assisted with Premium Gas Struts |
| Wind Resistance | Beaufort Scale 4–6 (size dependent) |
| Weight (without base) | 60kg / 75kg / 85kg |
| Base Options | Ground-Spike Base / Iron Plate Base |
| Lighting | Optional LED Strip Lighting |
| Customization | Logo on canopy corners and valance |
Designed for These Spaces
Hotel Pool Decks
Resort Terraces
Restaurant Patios
Commercial Courtyards
Ready to Spec FHUM103 for Your Project?
Foris Hortus supports OEM/ODM customization including size, color, logo placement, and LED configuration. Contact us for samples, CAD support, and project pricing.
