Premium Cantilever Outdoor Umbrella with Adjustable Tilt & LED Lighting Option
| Share | |
|---|---|
| Categories | Cantilever Umbrellas |
| Brand | Foris Hortus |
| Product Specifications | Cantilever Series |
| Product Type | Cantilever / Side Pole Umbrella |
| Shape | Square Roman Umbrella |
| Opening Mechanism | Crank Handle |
| Rotation | 360° |
| Tilt | Left-Right Adjustable |
| Main Pole | 65×65×2.0mm Aluminum |
| Ribs | 18×30×1.0mm Aluminum |
| Fabric | 250g Polyester, PA Coating, UPF 50+ |
| Wind Resistance | Beaufort Scale 6 (~50 km/h) |
| LED Lighting | Optional LED Strip System |
| Customization | Logo on Canopy, Corners, Pole |
| Base Options | Water Tank / Cross Tile / Iron Plate |
| FOB port | Ningbo |
| Terms of Payment | L/C, D/A, D/P, Western Union |
Premium Cantilever Outdoor Umbrella with Adjustable Tilt & LED Lighting
A commercial-grade side-pole shade solution engineered for hotels, resorts, restaurants, and upscale outdoor venues. Features 360° rotation, left-right tilt, Beaufort 6 wind resistance, and an optional LED lighting system.
Request a Quote
Why Choose a Cantilever Shade System
Designed to maximize usable outdoor space while delivering all-day sun protection and nighttime ambiance.
Cantilever Side-Pole Design
Frees the center of seating areas so tables and chairs can be arranged without a pole in the way.
Left-Right Adjustable Tilt
Track the sun from morning to evening for continuous shade coverage and better guest comfort.
Beaufort 6 Wind Resistance
Reinforced aluminum frame and ribs withstand up to 50 km/h winds in real commercial conditions.
Clean Center, Maximum Shade
The side-pole cantilever design keeps tables, chairs, and traffic paths completely clear while the oversized square canopy delivers generous shade coverage for busy commercial terraces.

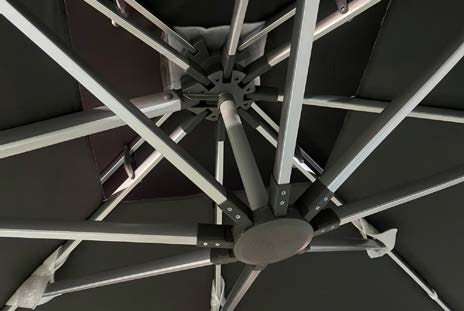

Get Project PricingHeavy-Duty Aluminum Frame Built to Last
Main Pole 65×65×2.0mm
Thick aluminum upright delivers stability and resists corrosion season after season.
Rib 18×30×1.0mm Alloy
Reinforced rib structure supports the large canopy without sagging.
Rust-Resistant Hardware
Aluminum connectors and heavy-duty fittings maintain integrity in coastal or humid climates.
360° Rotation + Tilt
A single umbrella can shade multiple seating positions throughout the day.
Smooth Crank Operation & Tilt Control
The crank handle opens and closes the canopy with minimal effort, while the side-mounted tilt mechanism lets staff adjust the shade angle quickly as the sun moves.
- One-person operation for large canopies
- No ladder or tools required
- Reduces daily wear compared to push-pull systems

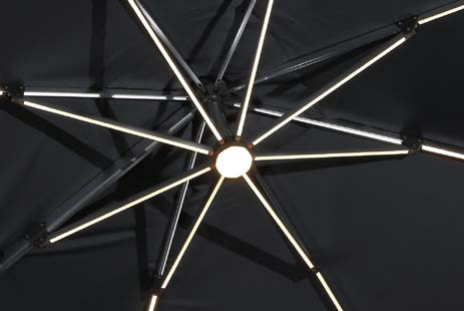

Extend Outdoor Hours with Integrated LED
Optional LED strips run along the ribs and emit a warm, even glow that turns daytime shading into nighttime atmosphere — ideal for outdoor dining, bars, and poolside lounges.
- Warm ambient glow across seating areas
- Low energy consumption
- Hidden integration keeps the canopy clean
- Creates a second revenue window after sunset
250g Polyester Canopy with UPF 50+ Protection
The PA-coated polyester fabric blocks harmful UV rays, sheds light rain, and resists fading under constant sun exposure — protecting guests and reducing replacement cycles.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | Roman Umbrella |
| Type | Cantilever / Side Pole Umbrella |
| Shape | Square |
| Opening | Crank Handle |
| Rotation | 360° |
| Tilt | Left-Right Adjustable |
| LED | Optional LED Strip Lighting |
| Main Pole | 65 × 65 × 2.0mm Aluminum |
| Ribs | 18 × 30 × 1.0mm Aluminum |
| Fabric | 250g Polyester with PA Coating, UPF 50+ |
| Wind Resistance | Beaufort Scale 6 (~50 km/h for 2.5×2.5M) |
| Available Sizes | 2.5×2.5M / 3×3M / 3.5×3.5M / 3×4M / 4×4M |
| Base Options | Water Tank / Cross Tile / Iron Plate |
| Customization | Logo on Canopy, Corners, and Pole |
Designed for Commercial Outdoor Spaces
Ready to Add This Model to Your Project?
Foris Hortus supports OEM/ODM customization including size, canopy color, logo placement, and LED configuration. Contact us for samples, CAD support, and project pricing.
Canopy Fabric Customization
Four benchmark canopy fabrics are available as standard, each selected for outdoor colour stability, weather resistance and commercial service life. Two additional options are available for projects on a different budget. Pick the performance level the project needs - the difference in raw material composition, colouring craftsmanship and weather resistance is what separates a 3-year canopy from a 10-year one.
| Fabric | Material | Colour Fastness | Outdoor Lifespan |
|---|---|---|---|
| Sunbrella | 100% Solution-dyed Acrylic | Grade 7-8 | 10 years+ |
| Sauleda | Acrylic | Grade 4-5 | 3-5 years |
| Feiler | Acrylic | Grade 6 | 5-8 years |
| Olefin | Polypropylene | Grade 4-5 | 3-5 years |
Sunbrella
Premium acrylic imported from the USA - the industry benchmark for hospitality projects.
- 100% solution-dyed acrylic for superior colour fastness and long-lasting vibrancy.
- Grade 7-8 colour fastness and 10 years+ outdoor lifespan.
- UPF 50+ UV shielding with waterproof, stain and mildew resistance.
- Top three colours: White 57003, Silver Grey QCLR073, Grey 54084.
Evercolor
Leading domestic premium outdoor fabric - a cost-effective alternative to imported acrylic.
- Polyester staple-fibre blend with Teflon coating.
- Weight 250 / 320 g per square metre.
- 500 Pa hydrostatic water resistance.
- 5-year outdoor lifespan and 50+ UV protection.
Proprietary Blend
Our in-house developed blend engineered for durability, texture and weather resistance.
- High-density plain weave, yarn-dyed, with optional water-repellent coating.
- Weight 300 g per square metre.
- 500 Pa hydrostatic head for light rain protection.
- 5-year outdoor lifespan; available non-coated or coated.
Full colour cards, physical swatch availability and custom colour matching are available on request - see fabric and colour customization.
Frame Finish Customization
The aluminium frame is offered in three finishes so the umbrella matches the architecture and the brand of the project. All three are applied to marine-grade aluminium and pass a 72-hour salt spray test.
Powder-Coated Finish
Premium powder-coat treatment with a rich colour range. Excellent resistance against fading and chipping, and the most practical choice for coastal and high-traffic sites.
Heat-Transfer Wood-Grain
Realistic timber texture transferred onto aluminium - the warm appearance of wood with no wood maintenance, no rot and no repainting.
Anodized / Oxidation
Durable anodized surface that is scratch-resistant and anti-corrosion, retaining its metallic texture for long-term outdoor use.
Frame dimensions, rib counts and mounting hardware can be adjusted for the project - see frame and structure customization, and logo and branding options.
Frequently Asked Questions
The questions buyers ask most often about this model. Tap a question to read the answer.
What are the main specifications?
This model is specified as Product Type Cantilever / Side Pole Umbrella; Shape Square Roman Umbrella; Opening Mechanism Crank Handle; Rotation 360°; Tilt Left-Right Adjustable; Main Pole 65×65×2.0mm Aluminum. All dimensions and finishes can be adjusted for the project, and the full size range is available on request.
How is a cantilever umbrella different from a center-pole umbrella?
The pole sits at one side and the canopy hangs over the space, so the area underneath stays completely free - no pole in the middle of a table, a pool ladder or a service aisle. That is why cantilever models are the default choice for hotel terraces, pool decks and restaurant courtyards.
Does it rotate and tilt?
Most models rotate through a full 360 degrees on a hand-crank or hydraulic mechanism and tilt through multiple positions, so the shade follows the sun rather than the other way around. Operating height typically ranges from 250 cm to 340 cm depending on the tilt position, keeping headroom clear for dining layouts.
How much wind can it take?
Rated resistance depends on canopy size and version, generally in the 35-45 km/h range. For exposed or open sites we recommend the vented double-tier canopy, which reduces wind load and improves airflow, and closing the umbrella in gusts above its rating.
Which base do I need?
The larger the canopy, the heavier the base must be. Water-tank, plate and in-ground bases are all used; the minimum recommended weight is listed in the size and weight data on this page. Our cantilever base range covers 60 kg to 360 kg.
Can I add lighting?
Yes. Versions with integrated LED strips or solar LED ribs are available, and most frames can also be ordered without lighting for cost-sensitive projects.
Can the fabric colour and my logo be customised?
Yes. Canopy fabric is available in the full colour range of the chosen fabric type, and logos can be applied to the canopy corners, valance, handle housing or main pole. Send your artwork and position and we will prepare a mock-up before production.
How is it packed and what is the warranty?
The umbrella ships in mail-order packaging built to pass an 80 cm drop test, with the base shipped separately. Outdoor furniture carries a 12-month warranty from the date of loading, and third-party inspection before shipment is supported.
