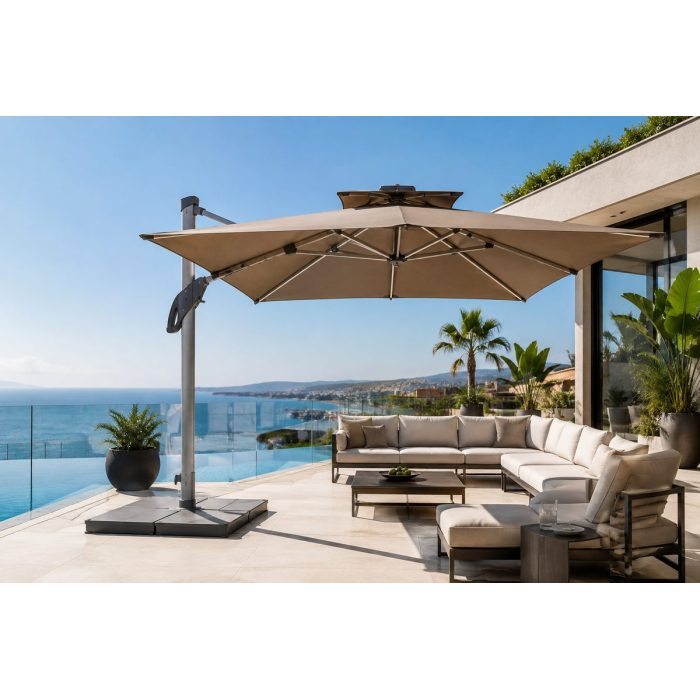

FHST063 160KG Heavy-Duty Split Steel Cantilever Umbrella Base
| Share | |
|---|---|
| Categories | Side Upright Umbrella |
| Brand | Foris Hortus |
| Model | FHST063 |
| Model | FHST063 |
| Type | Modular Cantilever Umbrella Base |
| Max Load | 160 KG (A3) |
| Plate Size | 45 ? 45 cm per plate |
| Main Material | Steel Plate |
| Connector Material | HD Polypropylene |
| Surface Finish | Electroplated + Powder-Coated |
| Configurations | A1 55KG / A2 80KG / A3 160KG |
| Steel Thickness A1 | 18 mm |
| Steel Thickness A2 | 12 mm |
| Steel Thickness A3 | 24 mm |
| Plates A1 / A2 | 4-piece |
| Plates A3 | 8-piece |
| Color | Grey / Wood-Grain Brown |
| Compatible Umbrella | Side-pole cantilever umbrellas (e.g. FHUM099 series) |
FHST063 160KG Heavy-Duty Split Steel Cantilever Umbrella Base
Built for Stability. Designed for Flexibility.
- Up to 160KG heavy-duty steel ballast for large cantilever umbrellas
- Split modular design ??4 or 8 plates for easier transport and install
- Three weight configurations: 55KG / 80KG / 160KG
- Electroplated + powder-coated steel for outdoor longevity
Why Choose the FHST063 Cantilever Base
Six engineering advantages for commercial-grade cantilever installations
160KG Max Load
The A3 spec combines 8 steel plates to 160KG, giving large cantilever umbrellas the ballast they need against coastal winds.
Split Modular Design
Each 45?45cm plate weighs a manageable 18-24kg, so two installers can carry the kit through hotel corridors and rooftops.
3 Weight Options
Pick 55KG, 80KG or 160KG to match your umbrella size, project budget and wind exposure.
Dual-Coated Steel
Electroplating plus powder-coating seals the steel against poolside chlorine, salt air and humidity.
Built for Cantilevers
Engineered specifically as the ballast partner for side-pole cantilever umbrellas ??pairs with the FHUM099 series.
Commercial-Ready
Specified for hotels, resorts, beach clubs and restaurant terraces across coastal and tropical climates.
Split Modular Construction
Heavy-duty ballast that still fits through a service door
Traditional 160KG cantilever bases are a single block ??almost impossible to deliver to upper floors or remote terraces. The FHST063 breaks the ballast into 4 or 8 modular plates so each component is a one-person lift.
- 4-plate A1 (55KG) and A2 (80KG) for residential and light commercial projects
- 8-plate A3 (160KG) for large cantilevers over hotel pools and rooftop lounges
- HD Polypropylene connectors join plates into a unified ballast platform
- Adjustable leveling feet compensate for uneven patio surfaces
Three Configurations, One Base System
Match ballast to umbrella size, exposure and budget
| Spec | A1 ? 55KG | A2 ? 80KG | A3 ? 160KG |
|---|---|---|---|
| Total Weight | 55 KG | 80 KG | 160 KG |
| Number of Plates | 4-piece | 4-piece | 8-piece |
| Plate Size | 45 ? 45 cm | 45 ? 45 cm | 45 ? 45 cm |
| Steel Thickness | 18 mm | 12 mm | 24 mm |
| Best Paired With | 2-3M residential | 3M light commercial | 3-4M commercial / coastal |
| Typical Use | Villa terrace | Caf? patio | Hotel poolside, rooftop |
Engineered for Outdoor Longevity
Steel + dual coating + HDPE connectors
The FHST063 base is built around three materials chosen for long service life under sun, salt and pool water:
- Steel Plate core ??provides the structural rigidity and weight foundation
- Electroplated + Powder-Coated finish ??seals the steel against rust and UV degradation
- HD Polypropylene connectors ??UV-stable, impact-resistant joins between plates
- Adjustable leveling feet ??keep the cantilever column perfectly vertical
Where the FHST063 Base Shines
Trusted across commercial outdoor environments
Hotel Pool Decks
Keep large cantilever umbrellas stable through afternoon wind and poolside traffic.
Beach Resorts
The dual-coated steel and HDPE connectors resist salt air and humid coastal air.
Restaurant Terraces
Modular plates fit through narrow kitchen doors and restaurant back-entries.
Caf? & Beach Clubs
Choose 80KG or 160KG depending on umbrella size and exposure to prevailing wind.
Need help matching the base to your cantilever? Talk to our engineering team for a recommended configuration.
Frequently Asked Questions
Common questions from hotel, resort and project buyers
Which FHST063 configuration should I choose for my cantilever umbrella?
Use A1 (55KG) for 2??M residential umbrellas, A2 (80KG) for 3M light commercial umbrellas in sheltered locations, and A3 (160KG) for 3??M commercial or coastal umbrellas where wind exposure is high.
Is the FHST063 sold with or without the cantilever umbrella?
The FHST063 is the steel base only. It is designed to pair with the FHUM099 series cantilever umbrella, but it is also compatible with most side-pole cantilever umbrellas on the market that share the standard 45?45cm footprint.
How is the base shipped and installed?
The base ships as individual plates (18??4kg each). Two installers can carry all plates to most rooftops, terraces and pool decks. Assembly is mechanical ??plates bolt together via the HDPE connectors ??no welding required on site.
What maintenance does the steel base require?
The electroplated + powder-coated finish is maintenance-free for normal outdoor use. Rinse with fresh water periodically if installed by the sea to remove salt deposits, and check the leveling feet every 6 months.
