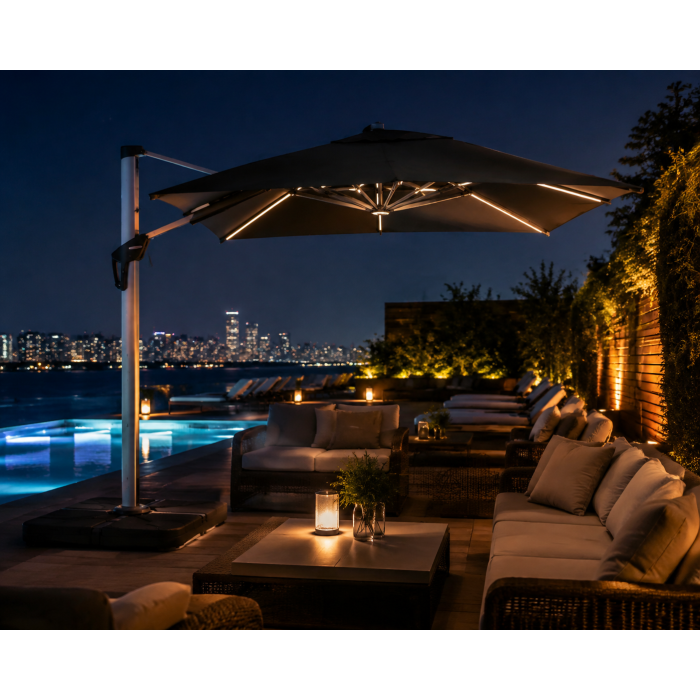

FHUM052 (S) Roman Side Pole Umbrella — Shade That Follows the Sun
An offset cantilever umbrella engineered for commercial terraces and premium patios. A full 360° aluminum swivel mechanism, smooth crank handle, and optional rib-mounted LED let you turn any open space into shaded, evening-ready seating — all on a corrosion-free natural anodized aluminum frame.
- Four sizes from 2.5×2.5M double canopy to 3×4M rectangular
- 360° rotation with tilt to track the sun all day
- Wind rated Beaufort 6 (45–50 km/h), commercial class
- Stable on a 120–140 kg base, no center pole in the way
Request a Quote
Why Buyers Choose the FHUM052 (S)
360° Rotation
An aluminum swivel mechanism turns the canopy a full circle, so one umbrella shades a shifting footprint from morning to sunset.
Effortless Crank Lift
A single crank handle opens and closes the canopy smoothly — no pulleys to snag, no cords to replace.
Optional LED Canopy
Warm LED strips run along the ribs. Switch them on at dusk for an inviting evening glow on terraces and pool decks.
Double-Canopy Venting
The 2.5×2.5M double top releases hot air and uplift, keeping the space cooler and the umbrella steadier in gusts.
Wind Rated Beaufort 6
Stays put in 45–50 km/h winds on a proper base — built for restaurants, resorts, and public spaces.
Anodized Aluminum Frame
Natural anodized aluminum never rusts and never paint-peels, even in coastal and poolside conditions.
Built From Natural Anodized Aluminum, Not Painted Steel
Every structural member is aluminum with a natural anodized finish. Anodizing is a controlled oxide layer grown into the metal — it cannot chip, flake, or rust, and it needs no touch-up paint. That means lower lifetime cost and a premium look that survives years outdoors.
- Main pole55×82×2.0 mm aluminum column
- Inclined rod48×28×2.0 mm aluminum
- Pull rod25×45×1.5 mm aluminum
- Ribs14.5×24×1.0 mm aluminum
- Fabric250 g polyester with PA coating (UV & water resistant)
Open, Rotate, Tilt — One Person, Seconds
The crank handle lifts the canopy from any angle, while the aluminum swivel at the mast foot rotates the whole arm a full 360°. A tilt adjustment drops the leading edge to block low evening sun. One staff member can reposition shade between tables in seconds — no tools, no ladders.
Pair it with a 120–140 kg base (sold separately) for stable, all-day commercial use.
Specifications
| Model | FHUM052 (S) |
|---|
| Type | Roman / Side Pole (Offset) Umbrella |
|---|
| Available sizes | 2.5×2.5M (double canopy), 3×3M, 3.5×3.5M, 3×4M |
|---|
| Main pole | 55×82×2.0 mm aluminum, natural anodized |
|---|
| Inclined rod | 48×28×2.0 mm aluminum |
|---|
| Pull rod | 25×45×1.5 mm aluminum |
|---|
| Ribs | 14.5×24×1.0 mm aluminum |
|---|
| Fabric | 250 g polyester, PA coating (UV & water resistant) |
|---|
| Opening | Crank handle |
|---|
| Rotation | 360° with aluminum swivel mechanism |
|---|
| Tilt | Adjustable |
|---|
| LED light | Optional (With / Without) |
|---|
| Wind resistance | Beaufort 6 — 2.5×2.5M ≈50 km/h; 3×3M & 3×4M ≈45 km/h |
|---|
| Umbrella weight | 34–36 kg (without base) |
|---|
| Recommended base | 120–140 kg |
|---|
| Packaging | ≈253×45×160 cm (varies by size) |
|---|
Where the FHUM052 (S) Shines
Restaurant & Café Terrace
Offset mast frees every seat; LED keeps tables booked after dark.
Resort & Pool Deck
Marine-grade anodized frame shrugs off chlorine and sea air.
Garden & Patio
Resort-quality shade at home, sized up to 3×4M.
Commercial & Public
Beaufort 6 rating stands up to busy outdoor venues.
Frequently Asked Questions
Is the LED lighting included?
LED is optional. Choose “With LED” or “Without LED” when you place the order — same frame, your call.
How heavy a base do I need?
A base of 120–140 kg is recommended (minimum 120 kg). The base is sold separately so you can match it to your surface.
Can it handle wind?
Yes — rated Beaufort 6: about 50 km/h for the 2.5×2.5M double canopy and about 45 km/h for the 3×3M and 3×4M sizes. Always close it in storms.
Which sizes are available?
2.5×2.5M (double canopy), 3×3M, 3.5×3.5M, and 3×4M rectangular — one frame family, four footprints.
Request a Quote for the FHUM052 (S)
Tell us your sizes, LED option, and base preference — we will return a wholesale quote and lead time. Custom logo on the canopy corners is available.
